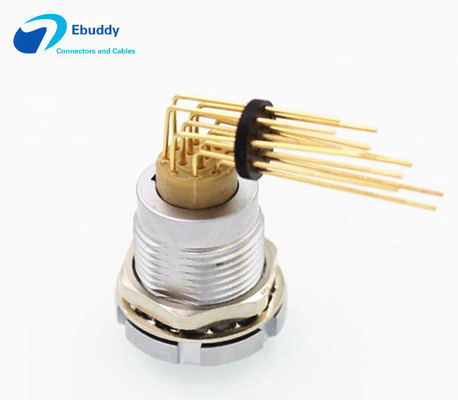

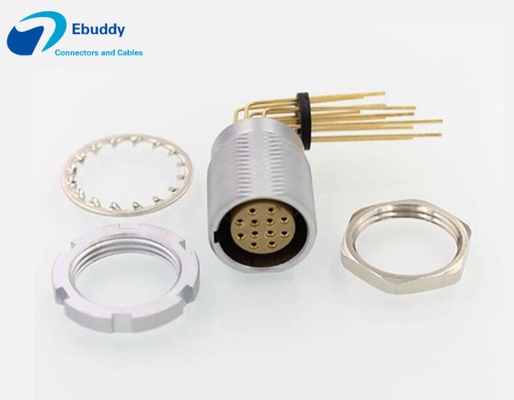

Circular Lemo B Series Connectors ECG 1B 2 3 4 5 6 Pin Elbow Contact For Printed Circuit board
Features Gallery Product Description Request A Quote
Features
Specifications
Serials: Lemo ECG
Size: 1B
Pin No: 2 3 4 5 6 7 8 10 14 16 Pin
Contact: Elbow For Printed Circuit
Warranty Time: 1 Year
Application: Industry
High Light:

pcb mount circular connector

,

right angle pcb connector

,

Circular Lemo B Series Connectors

Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE,ROHS
Model Number: EY-M701
Payment & Shipping Terms
Packaging Details: PP bag
Delivery Time: 3-7 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 90000pcs per month
Product Description



LEMO Circular Connector ECG 1B 2 3 4 5 6 7 8 10 14 16 Pin Elbow Contact For Printed Circuit board



Specifications:

  • Lemo ECG Elbow panel connector
  • Push pull self-locking, very security systems and easy for mating and unmating
  • Good quality with best competitive price, can help you save at least 50% cost
  • 100% compatible with Lemo/ fischer/ Hirose, or we will refund
  • Application: Camera, medical, Instrumentation, Industry,Energy
  • Warranty time: 1 year, any problems in warranty time, we will fix it for free or replace new one for you, shipping cost paid by us





Panel Cut-outs



If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.



Circular Lemo B Series Connectors ECG 1B 2 3 4 5 6 Pin Elbow Contact For Printed Circuit board 0





Insulating washer(color wheel):



Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.



Color option : different color for your choice: Blue/white/Gray/yellow/brown/black/red/orange

Green.



Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size



Circular Lemo B Series Connectors ECG 1B 2 3 4 5 6 Pin Elbow Contact For Printed Circuit board 1



Circular Lemo B Series Connectors ECG 1B 2 3 4 5 6 Pin Elbow Contact For Printed Circuit board 2

Circular Lemo B Series Connectors ECG 1B 2 3 4 5 6 Pin Elbow Contact For Printed Circuit board 3
