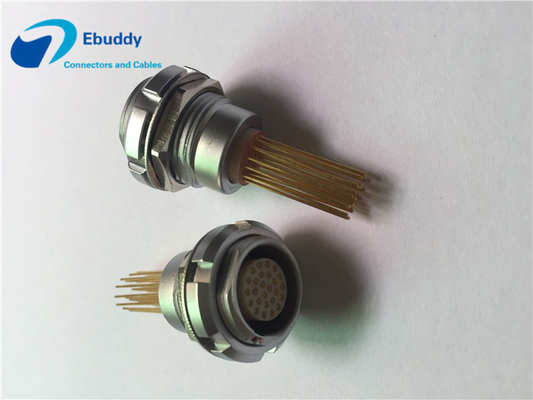

26 Pin Female Socket Pcb Board Connectors ECG 2B With 2 Nuts Fixed Receptacle

1
MOQ
Negotiable
Price
26 Pin Female Socket Pcb Board Connectors ECG 2B With 2 Nuts Fixed Receptacle
Features Gallery Product Description Request A Quote
Features
Specifications
Locking Style: Push Pull Self-locking
Insulator: P:PPS
Endurance (Shell): 5000 Mating Cycles
Configuration: Brass (gold Plated)
Shock Resistance: 100g.6ms
Shell Style: PCB Welding
High Light:

pcb mount circular connector

,

circular pcb connector

Basic Infomation
Place of Origin: China
Brand Name: Ebuddy
Certification: CE,ROHS
Model Number: DCG.2B.326.CLAD
Payment & Shipping Terms
Packaging Details: PP bag
Delivery Time: 5-8workingdays
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 10000pcs per month
Product Description



26pin female socket ECG 2B size 26pin printed circuit board connector medical equipment PCB connector



Description
  • Lemo ECG straight pin for PCB mounted
  • 2B serials, 2pin,3pin,4pin,5pin,6pin,7pin,8pin,10pin,12pin,14pin,16pin,19pin, 26pin
  • Suitable for printed circuit
  • With 2 nuts, easier for fixing on the board
  • EC*: Fixed receptacle with two nuts, with elbow contact for printed circuit (back panel mounting)
  • OEM available
  • 1 year warranty



Custom service:
  • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
  • Cable assembly service: we can supply cable assembly service according to your requirements.
  • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
  • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
  • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.



Insulating washer(color wheel):
  • Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.
  • Color options:

26 Pin Female Socket Pcb Board Connectors ECG 2B With 2 Nuts Fixed Receptacle 0



Please confirm 2B size and drawing as followings:



26 Pin Female Socket Pcb Board Connectors ECG 2B With 2 Nuts Fixed Receptacle 1



26 Pin Female Socket Pcb Board Connectors ECG 2B With 2 Nuts Fixed Receptacle 2
