Red Camera Connection Cable Lemo 9 Pin To RJ45 Female Ethernet Cable For RED EPIC / DRAGON

China Red Camera Connection Cable Lemo 9 Pin To RJ45 Female Ethernet Cable For RED EPIC / DRAGON supplier

Large Image :  Red Camera Connection Cable Lemo 9 Pin To RJ45 Female Ethernet Cable For RED EPIC / DRAGON

Product Details:

Place of Origin: China
Brand Name: Ebuddy
Certification: CE,ROHS
Model Number: FGG9-rj45

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: PP bag
Delivery Time: 5-8workingdays
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Application: Red Camera Connector1: Lemo 9pin
Connector2: RJ45 Female Cable Length: 0.3M
Cable OD: 6mm Style: Male To Female

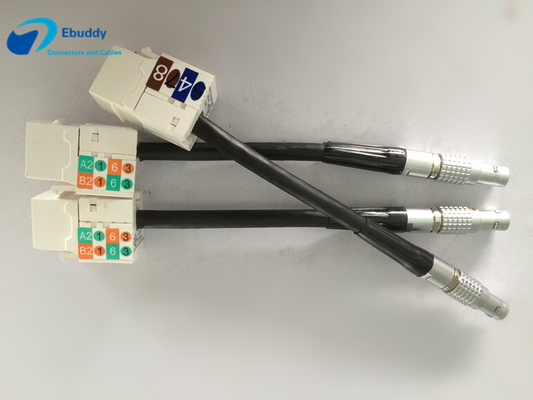

Red camera connection cable Lemo 9pin to RJ45 female ethernet cable for RED EPIC/DRAGON



Description



  • Red Epic/Dragon camera Ethernet connection cable
  • Lemo 9pin to RJ45 ethernet female cable
  • Custom cable length is available, we have done 0.3M--15M cable
  • Connector style: right angle or straight
  • Overmold is ok
  • Fast delivery time: 3-5working days for usual models
  • Warranty time: 1 year, any problems in warranty time, we will fix it for free or replace new one for you, shipping cost paid by us

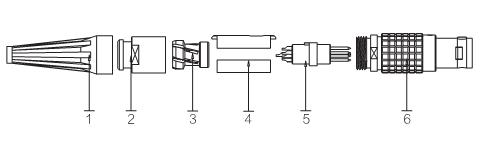

DIY cable assembly process



Lemo B serials:

  1. Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
  2. Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
  3. put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
  4. pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
  5. Screw the collet nut tightly
  6. Hitch the sleeve to the corresponding step of collet nut.

Red Camera Connection Cable Lemo 9 Pin To RJ45 Female Ethernet Cable For RED EPIC / DRAGON

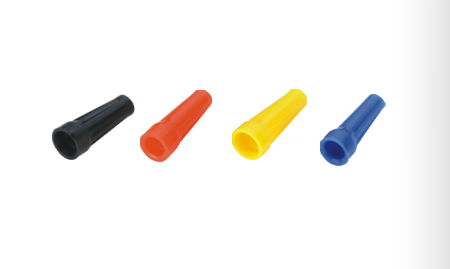

Corlorful Sleeve (Jacket)



Specification:

  • Material: Polyurethane material(PU)
  • Temperature range: -40°--- +80°
  • Color: Black, Red, Blue, White, Yellow, Green
  • Size: 00B/0B/1B/2B, 0K/1K/2K
  • Cable OD Range: 3.1mm—8.2mm

Red Camera Connection Cable Lemo 9 Pin To RJ45 Female Ethernet Cable For RED EPIC / DRAGON



Red Camera Connection Cable Lemo 9 Pin To RJ45 Female Ethernet Cable For RED EPIC / DRAGON
