Camera Lens Cable LEMO Angled Connector FHG 0B 4 pin Plug to FHG 0B 4pin cable

1pc
MOQ
Negotiable
Price
Camera Lens Cable LEMO Angled Connector FHG 0B 4 pin Plug to FHG 0B 4pin cable
Features Gallery Product Description Request A Quote
Features
Specifications
ConnectorA: FHG 0B 4 Pin
ConnectorB: Lemo FHG 0B 4 Pin
Cable Length: 0.8M Spring Cable
Contact Type: Male To Male
Application: Camera Lens Cable
Cable OD: 4MM
High Light:

red camera cable

,

arri alexa audio cable

Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE,ROHS
Model Number: Lemo 4pin to 4pin
Payment & Shipping Terms
Packaging Details: PP bag
Delivery Time: 3-7 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 90000pcs per month
Product Description



Camera Lens Cable Arri LBUS FIZ MDR Wireless Focus LEMO Angled Connector FHG 0B 4 pin Plug to FHG 0B 4pin cable



Description:



  • LEMO Angled Connector FHG 0B 4 pin Plug to FHG 0B 4pin cable
  • Camera Lens Cable Arri LBUS FIZ MDR Wireless Focus cable
  • Connector A: Lemo FHG 4pin, Connector B: Lemo FHG 4pin
  • Cable Length: 0.8m(We can customize)
  • Fast delivery time: 3-5working days for usual models
  • Application: Arri LBUS FIZ MDR Wireless Focus cable
  • Good quality with best competitive price, can help you save at least 50% cost



DIY cable assembly process:



  1. Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
  2. Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
  3. put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
  4. pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
  5. Screw the collet nut tightly
  6. Hitch the sleeve to the corresponding step of collet nut.

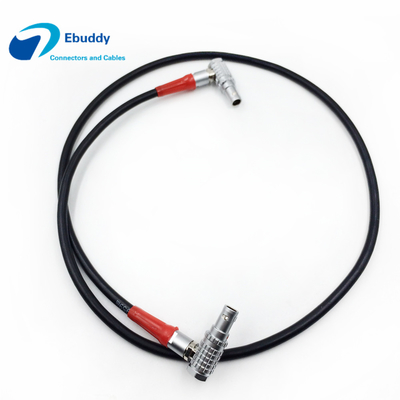

Camera Lens Cable LEMO Angled Connector FHG 0B 4 pin Plug to FHG 0B 4pin cable 0

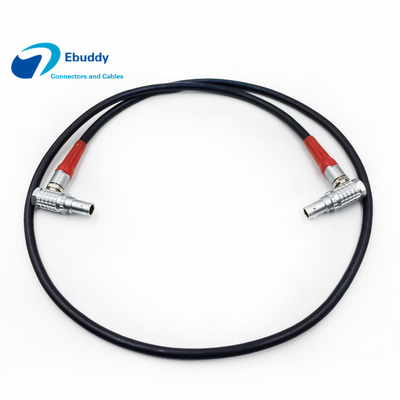

Camera Lens Cable LEMO Angled Connector FHG 0B 4 pin Plug to FHG 0B 4pin cable 1



Camera Lens Cable LEMO Angled Connector FHG 0B 4 pin Plug to FHG 0B 4pin cable 2
