Solder Contact Lemo B Series Connectors 0B 1B 2B 8 Pin Fixed ECG Solder Female Socket

1
MOQ
Negotiable
Price
Solder Contact Lemo B Series Connectors 0B 1B 2B 8 Pin Fixed ECG Solder Female Socket
Features Gallery Product Description Request A Quote
Features
Specifications
Contact Type: Solder
Max. Matings: 5000
Shell Style/Model: Female Socket
Vtest (contact-shell): 700 V (AC), 990 V (DC)
Vtest (contact-contact): 800 V (AC), 1130 V (DC)
IP Rating: 50
High Light:

10 pin lemo connector

,

9 pin circular connector

Basic Infomation
Place of Origin: China
Brand Name: Ebuddy
Certification: CE,ROHS
Model Number: ECG.2B.308.CLL
Payment & Shipping Terms
Packaging Details: PP bag
Delivery Time: 5-8workingdays
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 10000pcs per month
Product Description

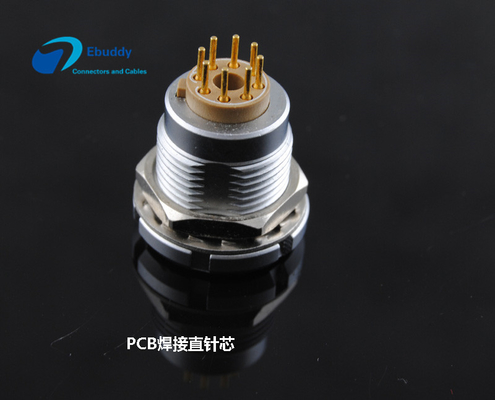

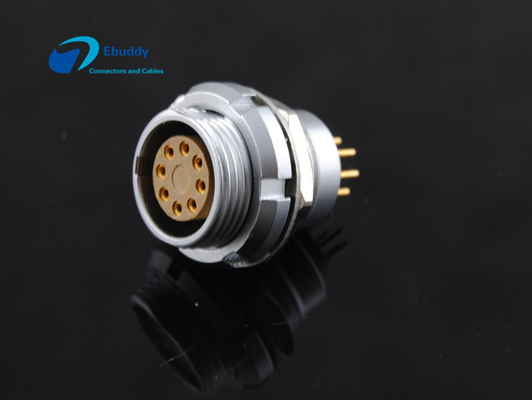

Lemo ECG solder female socket ECG 0B 1B 2B 8pin fixed socket ECG.2B.308.CLL



Main features:



  • Lemo ECG solder female socket
  • ECG 0B 1B 2B 8pin fixed socket ECG.2B.308.CLL
  • Pins: 2- 32pin
  • Keying: 1 key (alpha=0)
  • Termination type: Female PCB or solder
  • Totaly compatible Lemo ECG, good quality with Endurance 5000 mating cycles
  • Customized demands are welcome! If you have any customized requirements, please send us details drawing, we will do for you.



Contacts No.:
  • 00B sizes: 2, 3 and 4
  • 0B sizes: 2 3 4 5 6 7 and 9
  • 1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 and 14
  • 2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32



PCB Board drilling figure



If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.





Insulating washer(color wheel):



  • Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.
  • Color option : different color for your choice: Blue/white/Gray/yellow/brown/black/red/orange/Green.
  • Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size
