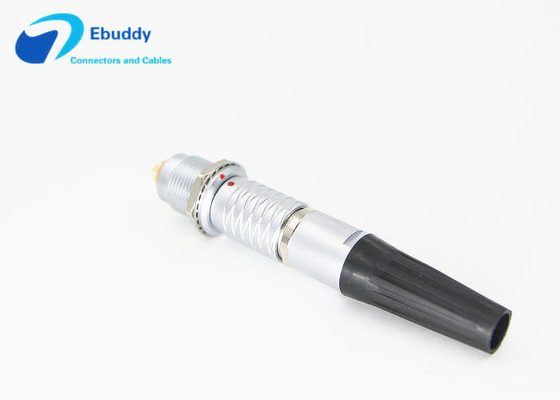

Lemo FGG 5 Pin Circular Push Pull Connectors For Surveying Instruments Cable Using

China Lemo FGG 5 Pin Circular Push Pull Connectors For Surveying Instruments Cable Using supplier
Lemo FGG 5 Pin Circular Push Pull Connectors For Surveying Instruments Cable Using supplier Lemo FGG 5 Pin Circular Push Pull Connectors For Surveying Instruments Cable Using supplier

Large Image :  Lemo FGG 5 Pin Circular Push Pull Connectors For Surveying Instruments Cable Using

Product Details:

Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: HGG.0B.305.CLAD

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Shell Style: Straight Plug With Cable Collet Keying: 1 Key (alpha=0)
Housing Material: Brass (chrome Plated) Shell Rated Current: 6.5 A
Max. Matings: 5000: 5000 IP Rating: IP50
R (max): 6.1 MOhm Configuration: Brass (gold Plated)



5pin push pull circular connector for surveying instruments cable using



Technical Specifications



  • Series: FGG*: Straight plug
  • Keying: 1key fixing, 0°
  • Housing Material:Brass chrome plated

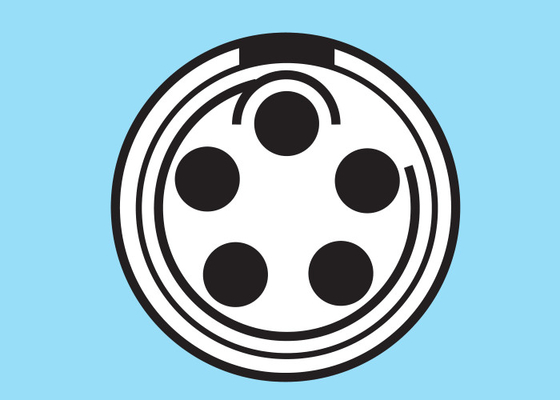

  • Insert:1B.305 : 5 Low Voltage
  • Configuration:Brass (gold plated)
  • Insulator:P:PPS
  • Specifications:Low Voltage
  • Vtest (AC):1000 V
  • Rated Current:6.5A
  • Endurance (Shell):5000 mating cycles



Cable collet size for your option:



  Collet No. Cable OD
0B Type coding Max Min
D 32 3.0 2.1
D 42 4.0 3.1
D 52 5.0 4.1





Application :
  • Medical
  • Defense Security
  • Instrumentation
  • Transportation
  • Industry
  • Energy
  • Broadcast
  • Audio/video



Waterproof IP rating:



Our connector mainly have 2 waterproof IP rating: IP50 and IP68, if you need IP50 products, you can choose Lemo B serials, if you higher IP68, Lemo K serials and S serials should be your choice.



For the IP rating, please let me explain for you as followings:



IP50:

  • Dust-prrof: Completely prevent foreign invasion, although not completely prevent the intrusion of dust, but the amount of dust intrusion will not affect the normal operation of electrical appliances
  • Waterproof: No special protection against water or moisture



IP68:

  • Dust-prrof: Completely prevent foreign objects and dust intrusion
  • Waterproof: Can be completely immersed in the water structure, the experimental conditions determined by the producers and users

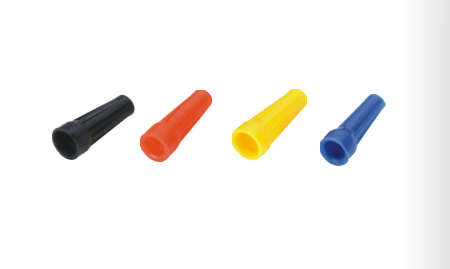

Corlorful Sleeve (Jacket)



Specification:

  • Material: Polyurethane material(PU)
  • Temperature range: -40°--- +80°
  • Color: Black, Red, Blue, White, Yellow, Green
  • Size: 00B/0B/1B/2B, 0K/1K/2K
  • Cable OD Range: 3.1mm—8.2mm

Color Option:



Lemo FGG 5 Pin Circular Push Pull Connectors For Surveying Instruments Cable Using

Size and Drawing:

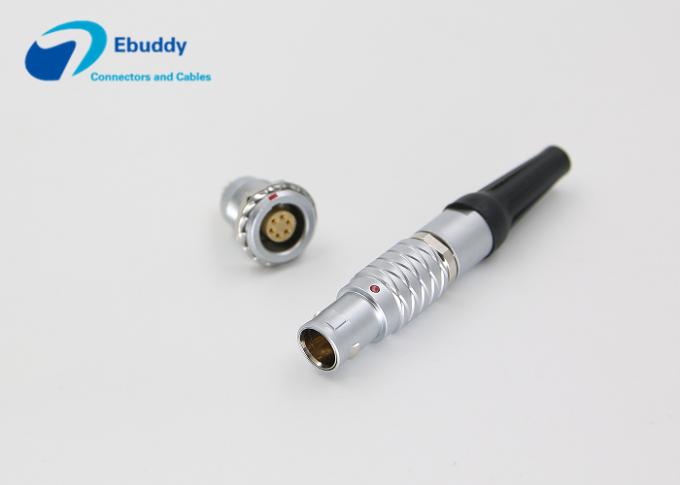

Lemo FGG 5 Pin Circular Push Pull Connectors For Surveying Instruments Cable Using



Lemo FGG 5 Pin Circular Push Pull Connectors For Surveying Instruments Cable Using
