FGG ECG 1B 2 - 16 Pin Lemo B Series Connectors Female Fixed Socket With Elbow Contact For PCB Printed

1pc
MOQ
Negotiable
Price
FGG ECG 1B 2 - 16 Pin Lemo B Series Connectors Female Fixed Socket With Elbow Contact For PCB Printed
Features Gallery Product Description Request A Quote
Features
Specifications
Specifications: Low Voltage
Max. Matings: 5000
Contact Type: Solder/printed Circuit(straight Or Elbow)
IP Rating: IP50
Style: Push Pull Self-locking
Shock Resistance: 100g.6ms
High Light:

10 pin lemo connector

,

9 pin circular connector

,

16 Pin Lemo B Series Connectors

Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE,ROHS
Model Number: EY-M712
Payment & Shipping Terms
Packaging Details: PP bag
Delivery Time: 3-7 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 90000pcs per month
Product Description

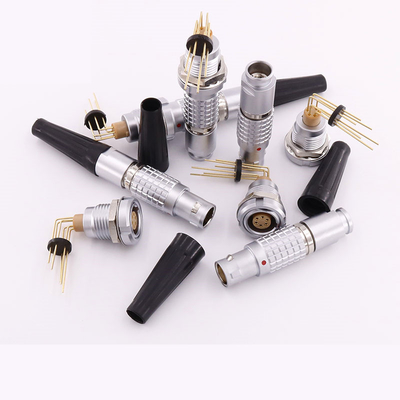

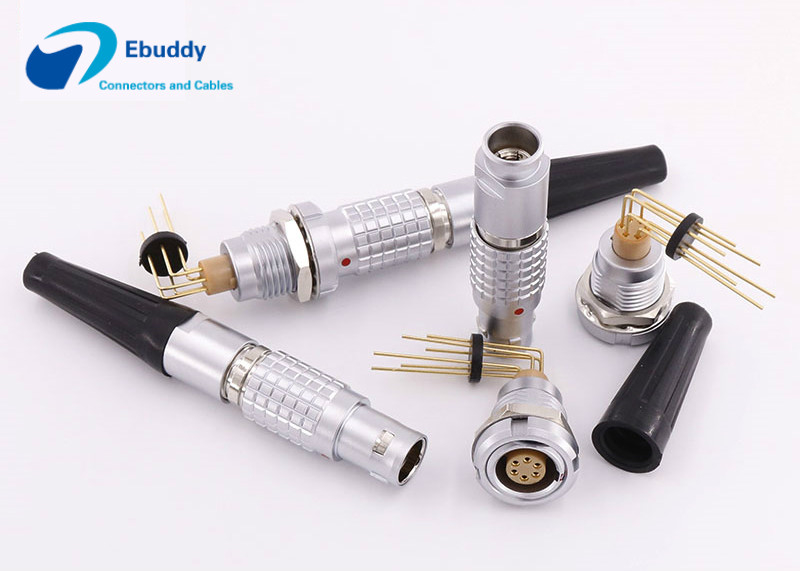

LEMO 1B Connector FGG ECG 1B 2 -16 Pin Female Fixed Socket With Elbow Contact For PCB Printed





Decription:



  • Lemo compatible 1B FGG Male plug and ECG elbow contact for PCB Printed
  • Pins: 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin 10pin 12pin 14pin 16pin
  • Size: 00B 0B 1B 2B 3B available
  • FGG plug for cable assembly, ECG elbow pins for panel install
  • Fast delivery time: 3-5working days for usual models
  • Push pull self-locking, very security systems and easy for mating and unmating
  • Good quality with best competitive price, can help you save at least 50% cost





Custom service:



  • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
  • Cable assembly service: we can supply cable assembly service according to your requirements.
  • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
  • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
  • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.





1B size collet:





  Collet No. Cable OD
1B Type coding Max Min
M 31 3 2.6
D 42 4.0 3.1
D 52 5.0 4.1
D 62 6.0 5.1
D 72 7.0 6.1





Size and drawing:



FGG ECG 1B 2 - 16 Pin Lemo B Series Connectors Female Fixed Socket With Elbow Contact For PCB Printed 0



FGG ECG 1B 2 - 16 Pin Lemo B Series Connectors Female Fixed Socket With Elbow Contact For PCB Printed 1



FGG ECG 1B 2 - 16 Pin Lemo B Series Connectors Female Fixed Socket With Elbow Contact For PCB Printed 2



FGG ECG 1B 2 - 16 Pin Lemo B Series Connectors Female Fixed Socket With Elbow Contact For PCB Printed 3
