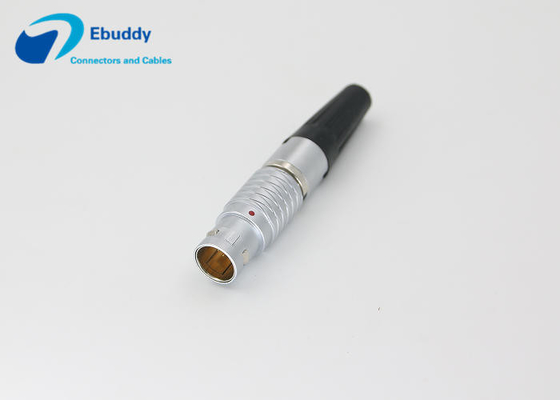

14 Pin Circular Cable Connector Lemo Push Pull Multipole 14 Pin Male Connector

China 14 Pin Circular Cable Connector Lemo Push Pull Multipole 14 Pin Male Connector supplier
14 Pin Circular Cable Connector Lemo Push Pull Multipole 14 Pin Male Connector supplier 14 Pin Circular Cable Connector Lemo Push Pull Multipole 14 Pin Male Connector supplier

Large Image :  14 Pin Circular Cable Connector Lemo Push Pull Multipole 14 Pin Male Connector

Product Details:

Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: HGG.1B.314.CLAD

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Shell Style: Straight Plug Keying: 1 Key (alpha=0)
Housing Material: Brass (chrome Plated) Shell Pin No:: 2-32pin
Max. Matings: 5000: 5000 IP Rating: IP50
R (max): 8.7 MOhm Vtest (AC): 1600 V



14 pin circular cable connector Lemo push pull multi pole 14pin male connector



Description:
  • 14pin circular cable connector totally compatible
  • Good quality with low cost
  • Push pull self-locking, very security systems and easy for mating and unmating
  • Multi pins from 2pin to 16pins
  • Sodering type and PCB printed circuit available
  • Cable collet diameter: 2.6mm-7.0mm
  • Cable & Connector custom is welcomed!



Technical specifications:



PERFORMANCE DETAILS
Insert 1B.314 :14 Low Voltage
Configuration Brass (gold plated)
Insulator P:PPS
Specifications Low Voltage
Contact Type Solder
Max. Matings 5000
Contact Dia 0.5 mm
Bucket Dia 0.45mm
Max. Solid Conductor 0.09 mm^2 (AWG 28)
Max. Stranded Conductor 0.09 mm^2 (AWG 28)
R (max) 8.7 mOhm
Vtest (AC) 1200 V
Rated Current 2 A
OTHER CHARACTERISTICS
Endurance (Shell) 5000 mating cycles
Temp (min) -20 deg C
Temp (max) +150 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
IP Rating 50


Why you need buy compatible connector?



1. 100% compatible lemo connector,

2. Help you save at least 30% cost

3. Cable assembly offer,help you save production time.





FAQ




1.How to choose connector you want?

(kindly tell us lemo connector model number or connector size and pins number you want)



2.How to pay us?

(We accept paypal,TT,westunion etc payment terms)



3.How we ship goods?

(By DHL,FEDEX,UPS etc pr you can choose your own express)



4.If i have a male or female lemo connector,could i use EBUDDY connector instead?

(Yes, our connectors are totally compatible with lemo connector)



5.How about delivery time of Ebuddy?

(Usually 5-8 days after received payment)

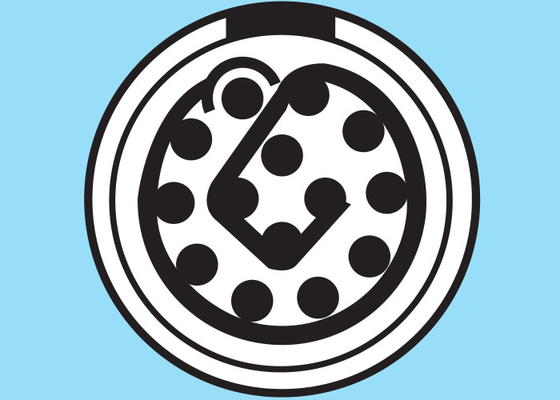

Size and drawing:



14 Pin Circular Cable Connector Lemo Push Pull Multipole 14 Pin Male Connector



Exactly Cable collet size for your option:



14 Pin Circular Cable Connector Lemo Push Pull Multipole 14 Pin Male Connector

14 Pin Circular Cable Connector Lemo Push Pull Multipole 14 Pin Male Connector
