Camera Connection Cable
Created with Pixso. Customized 18 Inch LCD EVF Cable For Red Camera Right Angle To Right Angle

Customized 18 Inch LCD EVF Cable For Red Camera Right Angle To Right Angle

Brand Name: Ebuddy
Model Number: EBLCDEVF24
MOQ: 1pc
Price: Negotiable
Delivery Time: 3-7 working days
Payment Terms: Western Union, MoneyGram, T/T
Detail Information
Place of Origin:
China
Certification:
CE,ROHS
Cable Length:
18inch
Application:
Red Epic/Red Dragon
Display Size:
4.7" & 5" 7"
Connector Style:
Straight Or Right Angle
Customized Service:
Yes
Cable Material:
TPU With Shield
Packaging Details:
PP Bag
Supply Ability:
90000pcs per month
Highlight:

camera power cable

,

red camera cable

Product Description

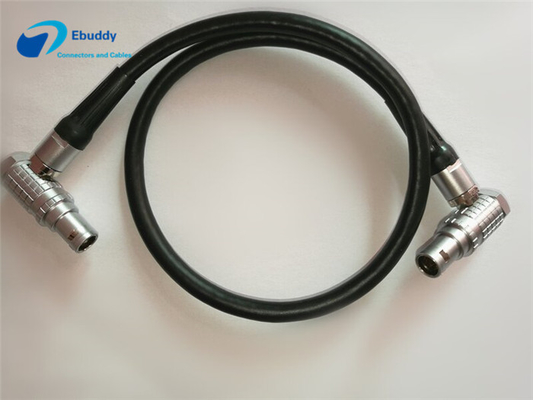

 18inch LCD EVF cable for red camera right angle to right angle



Features:



  • ​LCD EVF cable for red camera
  • Connector: 2* FHG.1B.316
  • Cable Length: 18inch, other cable length available, the longest model is 11M
  • Cable OD=6MM
  • Warranty time: 1year, any problems in warranty time, we will fix for free or replace new one



DIY cable assembly process:



  • Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
  • Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
  • put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
  • pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
  • Screw the collet nut tightly
  • Hitch the sleeve to the corresponding step of collet nut.

Customized 18 Inch LCD EVF Cable For Red Camera Right Angle To Right Angle 0



Customized 18 Inch LCD EVF Cable For Red Camera Right Angle To Right Angle 1
