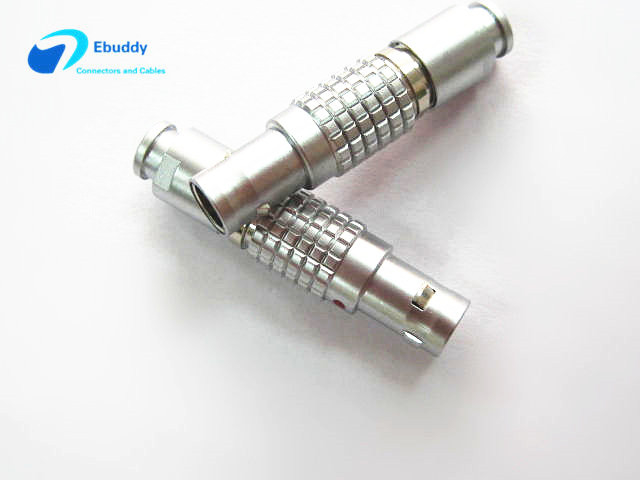

Lemo Compatible Connector FGG 1b Size 2 Pin Male Plug FGG.1B.302

Lemo Compatible Connector FGG 1b Size 2 Pin Male Plug FGG.1B.302

  • Lemo Compatible Connector FGG 1b Size 2 Pin Male Plug FGG.1B.302
  • Lemo Compatible Connector FGG 1b Size 2 Pin Male Plug FGG.1B.302
Lemo Compatible Connector FGG 1b Size 2 Pin Male Plug FGG.1B.302
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: FGG.1B.302.CLAD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Size: 1B Insert: 1B.302 : 2 Low Voltage
Max. Matings: 5000 Salt Spray Corossion Test: > 48hrs
Shock Resistance: 100g.6ms Configuration: Brass (gold Plated)
High Light:

industrial circular connectors

,

multi pin electrical connectors



Lemo compatible connector FGG 1b size 2pin male plug FGG.1B.302



Technical Specifications:



  • Style: push pull self-locking
  • Series: FGG*: Straight plug
  • Keying: 1key fixing, 0°
  • Housing Material:Brass chrome plated
  • Insert:1B : 2 Low Voltage
  • Configuration:Brass (gold plated)
  • Insulator:P:PPS
  • Specifications:Low Voltage
  • R (max):6.1 mOhm
  • Vtest (AC):1200 V
  • Rated Current:5 A
  • Endurance (Shell):5000 mating cycles



FAQ



  • 1.Question: How to pay us?
  • Answer: (We accept paypal,TT,westunion etc payment terms)
  • 2.Question: If i have a male or female lemo connector,could i use EBUDDY connector instead?
  • Answer: (Yes, our connectors are totally compatible with lemo connector)
  • 3.Question : How about delivery time of Ebuddy?
  • Answer: (Usually 5-8 days after received payment)





Why choose Ebuddy



  • Complete compatible with lemo/odu/fischer/hirose connector with lower cost
  • ROHS,ISO9001:2008,UL standard
  • Short delivery time:7-10 days normally
  • Factory can produce 5000 set/week
  • Samples offer to check first



Warranty Policy: 1year warranty time



  • For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:
  • 1. we will fix it or replace new brand one
  • 2. We will bear both sides shipping cost.



Cable collet size for your option:



Lemo Compatible Connector FGG 1b Size 2 Pin Male Plug FGG.1B.302 0

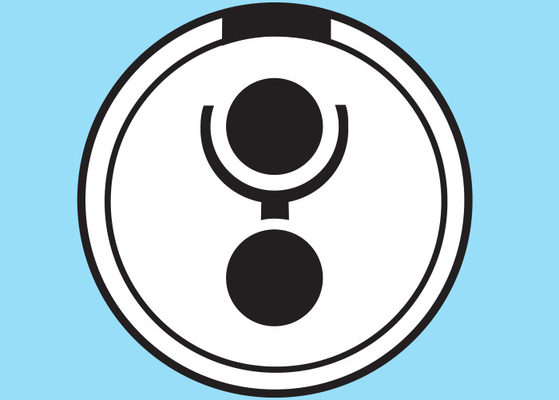

Size and Drawing:



Lemo Compatible Connector FGG 1b Size 2 Pin Male Plug FGG.1B.302 1Lemo Compatible Connector FGG 1b Size 2 Pin Male Plug FGG.1B.302 2



Lemo Compatible Connector FGG 1b Size 2 Pin Male Plug FGG.1B.302 3
