Lemo Compatible FGG 0B 2pin Push Pull Circular Connectors For Teradek Power Supply

Lemo Compatible FGG 0B 2pin Push Pull Circular Connectors For Teradek Power Supply

  • Lemo Compatible FGG 0B 2pin Push Pull Circular Connectors For Teradek Power Supply
  • Lemo Compatible FGG 0B 2pin Push Pull Circular Connectors For Teradek Power Supply
Lemo Compatible FGG 0B 2pin Push Pull Circular Connectors For Teradek Power Supply
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE,ROHS
Model Number: FGG.0B.302.CLAD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD2-10/PC
Packaging Details: PP bag
Delivery Time: 5-8workingdays
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
IP Rating: IP50 Insulator: P:PPS
Contact Type: Solder Max. Matings: 5000
Cable Fixing: OD=2.1mm--5.0mm Shell Style: Male Straight Plug
Rated Current: 10A Vtest (AC): 1600V
High Light:

industrial circular connectors

,

micro circular connectors

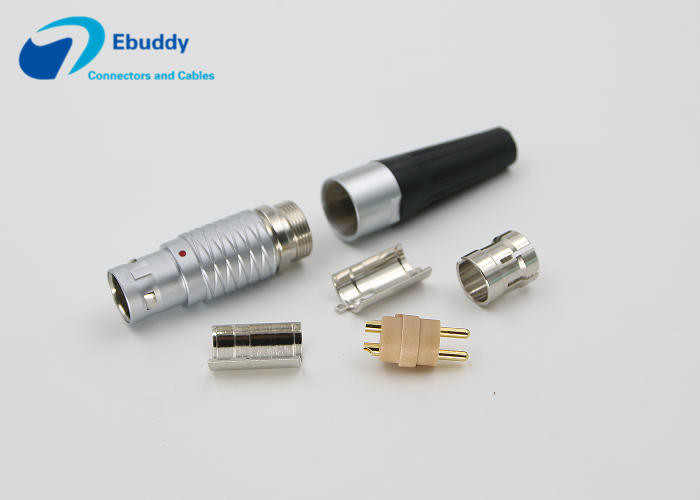

Lemo compatible FGG 0B 2pin male plug for Teradek power supply



Specifications:
  • Size: 1B
  • Series: FGG*: Straight plug
  • Keying: 1key/2key, 0°,45°
  • Housing Material:Brass chrome plated
  • Insert:0B.302: 2 Low Voltage
  • Configuration:Brass (gold plated)
  • Insulator:P:PPS
  • Specifications:Low Voltage
  • Contact Type:Solder/printed circuit(straight or elbow)
  • Max. Matings:5000
  • Contact Dia:0.9 mm
  • Bucket Dia:0.8 mm
  • Max. Solid Conductor:0.34 mm^2 (AWG 22)
  • Max. Stranded Conductor:0.34 mm^2 (AWG 22)
  • R (max):4.8 mOhm
  • Vtest (AC):1600 V
  • Rated Current:10 A



Cable clamp for your options:



  • D32: OD=2.1---2.6mm
  • D42: OD=3.1---4.0mm
  • D52: OD=4.1---5.0mm



Corlorful Sleeve (Jacket):



  • Material: Polyurethane material(PU)
  • Temperature range: -40°--- +80°
  • Color: Black, Red, Blue, White, Yellow, Green
  • Size: 00B/0B/1B/2B, 0K/1K/2K
  • Cable OD Range: 3.1mm—8.2mm





Why you need buy compatible connector:



  • 100% compatible lemo connector,
  • Help you save at least 30% cost
  • Cable assembly offer,help you save production time.

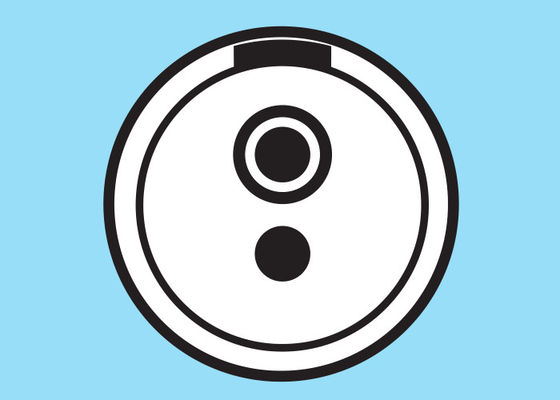

Please confirm 0B size and drawing as followings:



Lemo Compatible FGG 0B 2pin Push Pull Circular Connectors For Teradek Power Supply 0



Lemo Compatible FGG 0B 2pin Push Pull Circular Connectors For Teradek Power Supply 1
