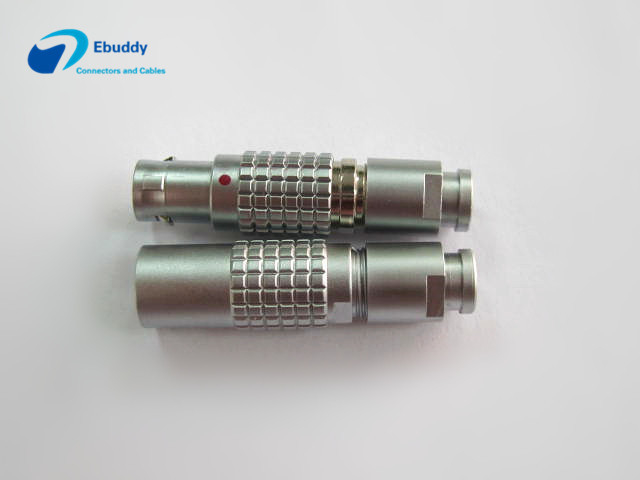

Push pull circular connector 2pin lemo cable connector FGG 2B size

Push pull circular connector 2pin lemo cable connector FGG 2B size

  • Push pull circular connector 2pin lemo cable connector FGG 2B size
  • Push pull circular connector 2pin lemo cable connector FGG 2B size
Push pull circular connector 2pin lemo cable connector FGG 2B size
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: HGG.2B.302.CLAD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Pin No: 2-32pin/Multi Pin Specifications: Low Voltage
Housing Material: Brass (chrome Plated) Shell Rated Current: 25A
Endurance (Shell): 5000 Mating Cycles IP Rating: IP50
Humidity (max): <=95% [at 60 Deg C / 140 F] Configuration: Brass (gold Plated)
High Light:

industrial circular connectors

,

micro circular connectors



Push pull circular connector 2pin lemo cable connector FGG 2B size



Description:



  • 2pin push pull circular cable connector
  • Best quality, easy for lacking and mating
  • Pins: 2-32pins, multi cores
  • 100% compatible with originals
  • Male plug, Sodering type , for cable welding
  • Cable collet diameter: 2.6mm-7.0mm
  • Sleeve Color: Black, Red, Blue, White, Yellow, Green

  • IP rating=50, dust-proof



Cable collet Size for your option:



  Collet No. Cable OD
1B Type coding Max Min
M 31 3 2.6
D 42 4.0 3.1
D 52 5.0 4.1
D 62 6.0 5.1
D 72 7.0 6.1



Other Technical Specifications:



OTHER CHARACTERISTICS
Endurance (Shell) 5000 mating cycles
Temp (min) -20 deg C
Temp (max) +150 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
IP Rating 50


Why you need buy compatible connector?



  • 100% compatible lemo connector,
  • Help you save at least 30% cost
  • Cable assembly offer,help you save production time.



Corlorful Sleeve (Jacket)



Specification:

Material: Polyurethane material(PU)

Temperature range: -40°--- +80°

Color: Black, Red, Blue, White, Yellow, Green

Size: 00B/0B/1B/2B, 0K/1K/2K

Cable OD Range: 3.1mm—8.2mm



Push pull circular connector 2pin lemo cable connector FGG 2B size 0



Size and Drawing:



Push pull circular connector 2pin lemo cable connector FGG 2B size 1





Push pull circular connector 2pin lemo cable connector FGG 2B size 2
