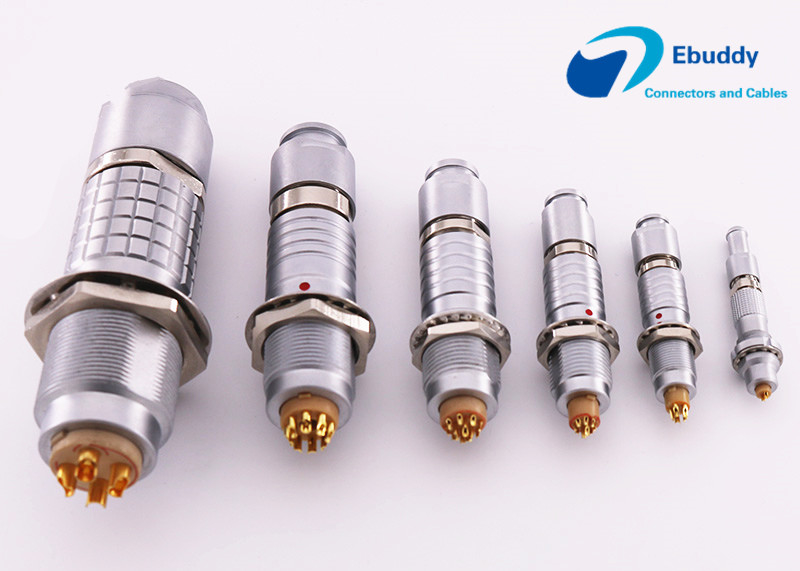

00B 0B 1B 2B 3B Lemo B Series Connectors alternative 2-32 pins for cable assembly

00B 0B 1B 2B 3B Lemo B Series Connectors alternative 2-32 pins for cable assembly

  • 00B 0B 1B 2B 3B Lemo B Series Connectors alternative 2-32 pins for cable assembly
00B 0B 1B 2B 3B Lemo B Series Connectors alternative 2-32 pins for cable assembly
Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE,ROHS
Model Number: FGG EGG
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: PP bag
Delivery Time: 3-10 working days
Payment Terms: Western Union, MoneyGram, T/T,Paypal
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Type: Plug And Socket Size: Lemo 00B 0B 1B 2B 3B
Configuration: Brass (gold Plated) Temp (min): -20 Deg C
Temp (max): +150 Deg C IP Rating: IP50
High Light:

multiple wire connectors

,

9 pin circular connector



00B 0B 1B 2B 3B Lemo alternative 2-32pins connectors for cable assembly



Features:



  • Lemo 00B 0B 1B 2B 3B connectors
  • Lemo alternative 2-32pins connectors for cable assembly
  • Application: Camera, medical, Instrumentation, Industry,Energy
  • Pins: 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin 10pin 12pin 14pin 16pin 19pin 26pin
  • Style: FGG straight plug, EGG fixed receptacle
  • Solder type for cable welding
  • Push pull self-locking, very security systems and easy for mating and unmating
  • High-low insulator positiobning avoid mismating
  • 360 degree screening for full EMS shielding





Cable assembly process :



  • Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
  • Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
  • put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
  • pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
  • Screw the collet nut tightly
  • Hitch the sleeve to the corresponding step of collet nut.

00B 0B 1B 2B 3B Lemo B Series Connectors alternative 2-32 pins for cable assembly 0



Custom service:



  • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
  • Cable assembly service: we can supply cable assembly service according to your requirements.
  • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
  • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
  • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.



00B 0B 1B 2B 3B Lemo B Series Connectors alternative 2-32 pins for cable assembly 1
