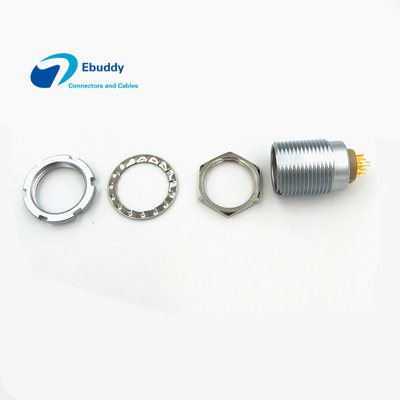

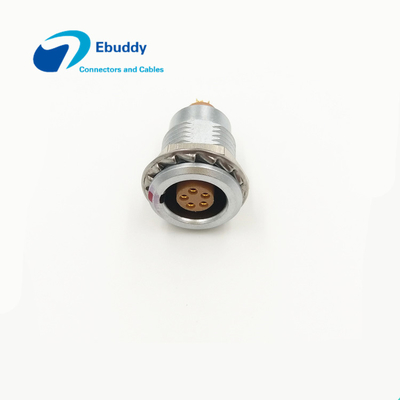

1B 5pin Alternative Metal Lemo Circular Push Pull Connector EGG.1B.305.CLL

1B 5pin Alternative Metal Lemo Circular Push Pull Connector EGG.1B.305.CLL

  • 1B 5pin Alternative Metal Lemo Circular Push Pull Connector EGG.1B.305.CLL
  • 1B 5pin Alternative Metal Lemo Circular Push Pull Connector EGG.1B.305.CLL
1B 5pin Alternative Metal Lemo Circular Push Pull Connector EGG.1B.305.CLL
Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE,ROHS
Model Number: EY-PB-19
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: PP bag
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 900000pcs per month
Contact Now
Detailed Product Description
Size: Lemo 1B Pin: 5pin
Style: Fixed Socket Humidity (max): <=95% [at 60 Deg C / 140 F]
Shock Resistance: 100g.6ms Salt Spray Corossion Test: > 48hrs
High Light:

10 pin lemo connector

,

multiple wire connectors

1B 5pin EGG fixed socket Lemo alternative metal circular push pull connector EGG.1B.305.CLL



Specifications:







PERFORMANCE DETAILS
Insert 1B.305 : 5 Low Voltage
Configuration Brass (gold plated)
Insulator P:PPS
Specifications Low Voltage
Contact Type Solder
Max. Matings 5000
Contact Dia 0.9 mm
Bucket Dia 0.8 mm
Max. Solid Conductor 0.34 mm^2 (AWG 22)
Max. Stranded Conductor 0.34 mm^2 (AWG 22)
R (max) 4.8mOhm
Vtest (AC) 1500 V
Rated Current 9 A




Others​ Technicals:



Temp (min) -20 deg C
Temp (max) +150 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
IP Rating 50




Size and drawing:



1B 5pin Alternative Metal Lemo Circular Push Pull Connector EGG.1B.305.CLL 0



1B 5pin Alternative Metal Lemo Circular Push Pull Connector EGG.1B.305.CLL 1

1B 5pin Alternative Metal Lemo Circular Push Pull Connector EGG.1B.305.CLL 2
