7 Pin ODU Alternative Circular Connector L Serials Multi Pole Connectors W20L0C-P07MCC00420S

Name: 7 Pin ODU Alternative Circular Connector L Serials Multi Pole Connectors W20L0C-P07MCC00420S
Brand: Ebuddy Technology Co.,Limited
SKU: EY-BT-0201
Price: 22.30 USD
Availability: InStock

Brand Name:	OEM
Model Number:	EY-BT-0201
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-10 working days
Payment Terms:	Western Union, MoneyGram, T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Style:

Push Pull Self-locking

Temp (min):

-20 Deg C

Temp (max):

+150 Deg C

Contact Type:

Solder

Shock Resistance:

100g.6ms

Packaging Details:

PP bag

Supply Ability:

500000pcs per month

Highlight:

10 pin lemo connector

9 pin circular connector

Product Description

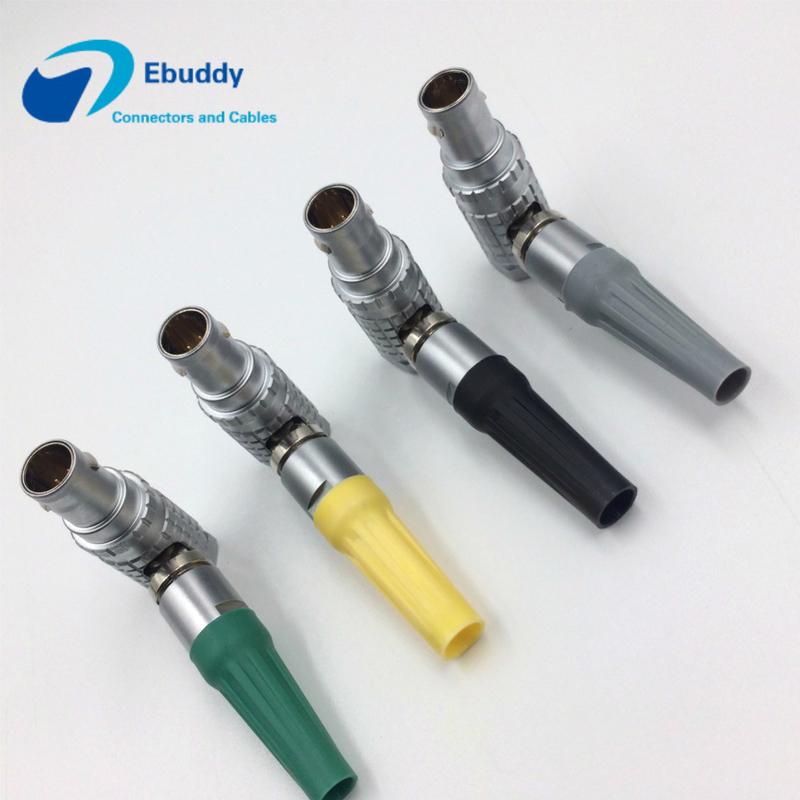

7 Pin ODU Alternative Circular Connector L Series Multi Pole Connectors

Model: W20L0C-P07MCC00420S
7-pin ODU alternative circular multi-pole cable connector offering full compatibility with ODU systems.

Key Features

100% compatible with ODU connectors - satisfaction guaranteed or full refund
Push-pull self-locking mechanism for secure and easy mating/unmating
Multiple sleeve color options: Black, Red, Blue, White, Yellow, Green
Applications: Camera systems, medical equipment, instrumentation, industrial automation, energy sector
Custom cable assemblies available for both small and mass quantities
Fast delivery: 3-5 working days for standard models

Cable Collet Specifications

Collet No.	Type	Coding	Max Cable OD (mm)	Min Cable OD (mm)
0B	D	32	3.0	2.1
D	42	4.0	3.1
D	52	5.0	4.1

Cable Assembly Instructions

Thread cable through sleeve collet nut in order, then solder cable wires to insulator one by one, paying close attention to wire order
Insert split carrier onto soldered insulator, ensuring carrier slot mates perfectly with insulator subassembly heave
Position collet on cable, making sure collet heave mates with split carrier slot
Insert insulator subassembly, split carrier, and collet into outer shell in sequence, ensuring split carrier heave mates with outer shell slot
Tighten collet nut securely
Attach sleeve to corresponding step of collet nut

Technical Specifications & Drawings
