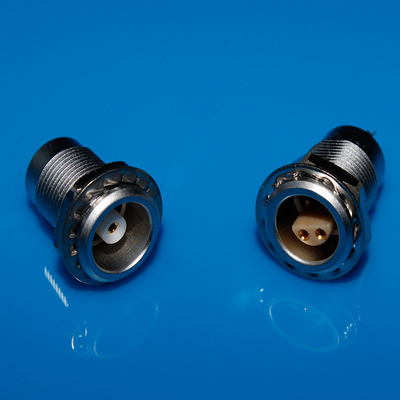

Compatible Lemo S Series ERA Socket Lemo Cable Connector ERA.0S.304.CLL​

Compatible Lemo S Series ERA Socket Lemo Cable Connector ERA.0S.304.CLL​

  • Compatible Lemo S Series ERA Socket Lemo Cable Connector ERA.0S.304.CLL​
Compatible Lemo S Series ERA Socket Lemo Cable Connector ERA.0S.304.CLL​
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: ERA.0S.304.CLAD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Keying: Hermaphroditic Keying Serie: ERA Socket
Rated Current: 7 Amps Shell Style: Fixed Receptacle
R (max): 6.1 MOhm
High Light:

lemo connector assembly

,

lemo 4 pin connector



Lemo compatible S Serials ERA socket Lemo cable welding connector ERA.0S.304.CLL​



Technical Description:



  • Lemo compatible S Serials ERA socket
  • Lemo cable welding connector ERA.0S.304.CLL​, can do cable assembly
  • Size: 00S 0S 1S available
  • Hermaphroditic keying ("half moon" insert), plug has male pin 1
  • Security of the push-pull self-latching system

  • Solder or print contacts(straight or elbow)

  • Polarisation by stepped insert(half-moon) fitted with male and female contacts



Cable collet option:
  • C27: OD=2.2---2.6mm
  • C32: OD=2.7---3. 1mm
  • C42: OD=3.3---4.1mm
  • K47: OD=3.8---4.6mm



Custom cable assembly service:



We promise all our cable assembly:

  • Professional engineer evaluate your needs
  • 100% testing before shipping
  • Small quantity are welcome
  • Overmold is available

Process:



Before do the cable assembly, there are some information need confirm first, like the cable connector, length,OD,wire diagram:



  • Cable application(we need to know it is for power or signal, then we can use suitable cable for you)
  • Cable length, cable OD
  • Both sides connectors (for the connector, please advise the model number or specification details)
  • Wire connection way (Our engineer will work out a connection diagram including all cable details for your confirmtion)

Compatible Lemo S Series ERA Socket Lemo Cable Connector ERA.0S.304.CLL​ 0



Size and drawing:



Compatible Lemo S Series ERA Socket Lemo Cable Connector ERA.0S.304.CLL​ 1

Compatible Lemo S Series ERA Socket Lemo Cable Connector ERA.0S.304.CLL​ 2
