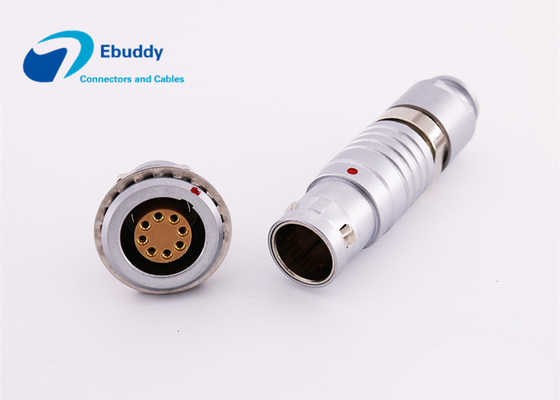

FGG EGG 2B Male And Female Lemo Alternative Connector FGG.2B.308.CLAD EGG.2B.308.CLL

FGG EGG 2B Male And Female Lemo Alternative Connector FGG.2B.308.CLAD EGG.2B.308.CLL

  • FGG EGG 2B Male And Female Lemo Alternative Connector FGG.2B.308.CLAD EGG.2B.308.CLL
FGG EGG 2B Male And Female Lemo Alternative Connector FGG.2B.308.CLAD EGG.2B.308.CLL
Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE,ROHS
Model Number: FGG.2B.308.CLAD
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: PP bag
Delivery Time: 3-10 working days
Payment Terms: Western Union, MoneyGram, T/T,Paypal
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Size: 2B Gender: 8pin Male And Female
Insulator: P:PPS Series:: Lemo FGG EGG
Mating Cycles: 5000 Times Contact Type: Solder
High Light:

10 pin lemo connector

,

multiple wire connectors



Lemo alternative connector FGG EGG 2B 8pin male and female connectors FGG.2B.308.CLAD EGG.2B.308.CLL



Features:
  • Lemo alternative connector
  • FGG EGG 2B 8pin male and female connectors
  • Lemo model number: FGG.2B.308.CLAD EGG.2B.308.CLL
  • Push pull self-locking, very security systems and easy for mating and unmating
  • Solder type, can do cable assembly
  • IP Rating:50



DIY cable assembly process:



  • Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
  • Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
  • put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
  • pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
  • Screw the collet nut tightly
  • Hitch the sleeve to the corresponding step of collet nut.

FGG EGG 2B Male And Female Lemo Alternative Connector FGG.2B.308.CLAD EGG.2B.308.CLL 0

Size and Drawing:



FGG EGG 2B Male And Female Lemo Alternative Connector FGG.2B.308.CLAD EGG.2B.308.CLL 1

FGG EGG 2B Male And Female Lemo Alternative Connector FGG.2B.308.CLAD EGG.2B.308.CLL 2



FGG EGG 2B Male And Female Lemo Alternative Connector FGG.2B.308.CLAD EGG.2B.308.CLL 3





FGG EGG 2B Male And Female Lemo Alternative Connector FGG.2B.308.CLAD EGG.2B.308.CLL 4
