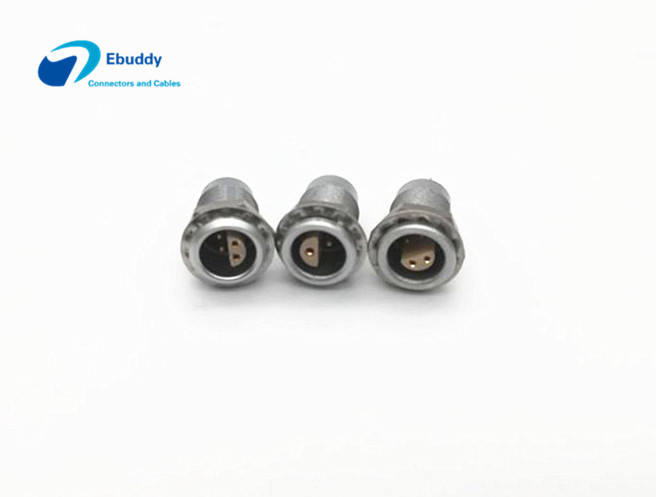

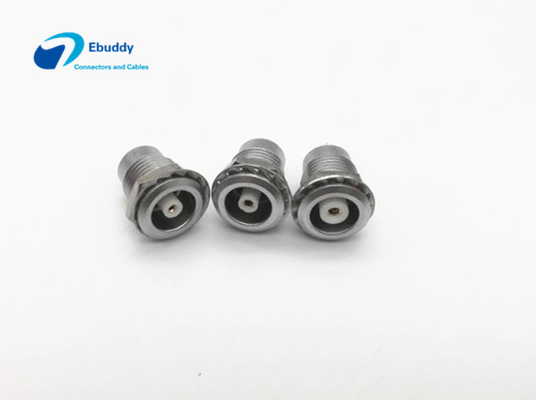

Half Moon Female Socket Lemo S Series Connector ERA 00S 0S 1S 50 IP Rating

Half Moon Female Socket Lemo S Series Connector ERA 00S 0S 1S 50 IP Rating

  • Half Moon Female Socket Lemo S Series Connector ERA 00S 0S 1S 50 IP Rating
  • Half Moon Female Socket Lemo S Series Connector ERA 00S 0S 1S 50 IP Rating
Half Moon Female Socket Lemo S Series Connector ERA 00S 0S 1S 50 IP Rating
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE,ROHS
Model Number: ZRA.1S.250
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 0.5USD
Packaging Details: PP bag
Delivery Time: 5-8workingdays
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Contact Type: Print (Elbow) Max. Matings: 5000
Shell Style/Model: Elbow Receptacle Vtest (contact-shell): 700 V (AC), 990 V (DC)
Vtest (contact-contact): 800 V (AC), 1130 V (DC) IP Rating: 50
High Light:

lemo connector assembly

,

lemo 4 pin connector



Lemo S series connector ERA 00S 0S 1S half moon female socket​



Main features:



  • S series

    S series connectors are used in audio/video applications, Machine industry, medical applications, research instrumentation as well as test and measurement environments. The self-latching connectors are with stepped inserts for alignment (of multipole version).



    Main features:

    -Security of the push-pull self-latching system;

    -Multipole types 2 to 10 contacts;

    -Solder or print contacts(straight or elbow);

    -High packing density for space savings;

    -Polarisation by stepped insert(half-moon) fitted with male and female contacts;

    -360°screening for full EMC shielding.



Contacts No.:
  • 00S sizes: 1pin Coaxial connector
  • 0B sizes: 2 3 4 5 6 7 and 9
  • 1S sizes: 2, 3, 4, 5, 6, 7, 8, 10 and 14
  • 2S sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32



PCB Board drilling figure:



If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.





Insulating washer(color wheel):



  • Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.
  • Color option : different color for your choice: Blue/white/Gray/yellow/brown/black/red/orange/Green.
  • Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size
