0S 4pin Lemo Cable Connector , Lemo S Series Wire Connectors FFA.0S.304.CLA

0S 4pin Lemo Cable Connector , Lemo S Series Wire Connectors FFA.0S.304.CLA

0S 4pin Lemo Cable Connector , Lemo S Series Wire Connectors FFA.0S.304.CLA
0S 4pin Lemo Cable Connector , Lemo S Series Wire Connectors FFA.0S.304.CLA
0S 4pin Lemo Cable Connector , Lemo S Series Wire Connectors FFA.0S.304.CLA
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: TFA.0S.304.CLAD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Size: 00S 0S 1S Serie: FFA Plug
Specifications: Low Voltage Shell Style: Straight Cable Connector
Pins: 4pin IP Rating: IP50
High Light:

lemo connector assembly

,

lemo 4 pin connector



S serials 0S 4pin male plug Lemo cable connector FFA.0S.304.CLA



Technical Description:
  • Shell Style/Model: FFA*: Straight plug, cable collet and nut for fitting a bend relief
  • Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
  • Configuration: 0S.304 : 4 Low Voltage
  • Rated Curren: 7A
  • Contact Type: Solder
  • Max. Matings: 5000
  • Contact Dia.: 0.7 mm (0.028in)
  • Bucket Dia.: 0.6 mm (0.024in)
  • Max. Solid Conductor: 0.25 mm^2 (AWG 24)
  • Max. Stranded Conductor: 0.14 mm^2 (AWG 26)
  • R (max): 6.1 mOhm
  • Vtest: 1060 V (AC), 1500 V (DC)



Cable collet option:



  Collet No. Cable OD
0S Type coding Max Min
C 27 2.6 2.2
C 32 3.1 2.7
C 42 4.1 3.3
K 47 4.6 3.8



Custom cable assembly service:



We promise all our cable assembly:

  • Professional engineer evaluate your needs
  • 100% testing before shipping
  • Small quantity are welcome
  • Overmold is available

Process:



Before do the cable assembly, there are some information need confirm first, like the cable connector, length,OD,wire diagram:



  • Cable application(we need to know it is for power or signal, then we can use suitable cable for you)
  • Cable length, cable OD
  • Both sides connectors (for the connector, please advise the model number or specification details)
  • Wire connection way (Our engineer will work out a connection diagram including all cable details for your confirmtion)

0S 4pin Lemo Cable Connector , Lemo S Series Wire Connectors FFA.0S.304.CLA   0

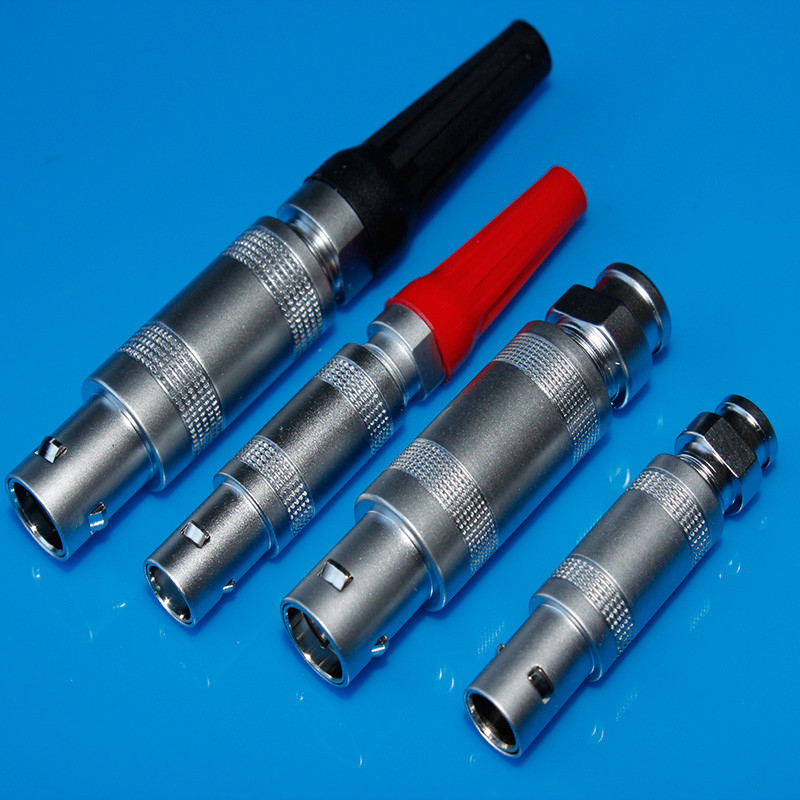

With Sleeve or without:



When you choose the plug, there always 2 style for your options : with sleeve or without. To make sure you have done a right chioce, please let me show you difference as followings:



Difference:



Model number :



Without sleeve: FGG.0B.304.CLAD52

With sleevr: FGG.0B.304.CLAD52Z, Z stand by sleeve



Advantage :

  • With sleeve: the sleeve can relieve some damage to the cable when working
  • Without sleeve: this structure can short both connectors length, for example, if you only need do 6cm—10cm long cable, you need use this style, it can be more flexible and easier to do cable assembly.



please see one our custom cable(it is 8cm long Lemo 2pin to FGJ 6pin for RED camera system ):



0S 4pin Lemo Cable Connector , Lemo S Series Wire Connectors FFA.0S.304.CLA   1



Structure : only a little difference in connector’s tail, no big function difference please see attached pictures:



without sleeve style:



0S 4pin Lemo Cable Connector , Lemo S Series Wire Connectors FFA.0S.304.CLA   2





With sleeve style:



0S 4pin Lemo Cable Connector , Lemo S Series Wire Connectors FFA.0S.304.CLA   3



Size and drawing:



0S 4pin Lemo Cable Connector , Lemo S Series Wire Connectors FFA.0S.304.CLA   4

0S 4pin Lemo Cable Connector , Lemo S Series Wire Connectors FFA.0S.304.CLA   5
