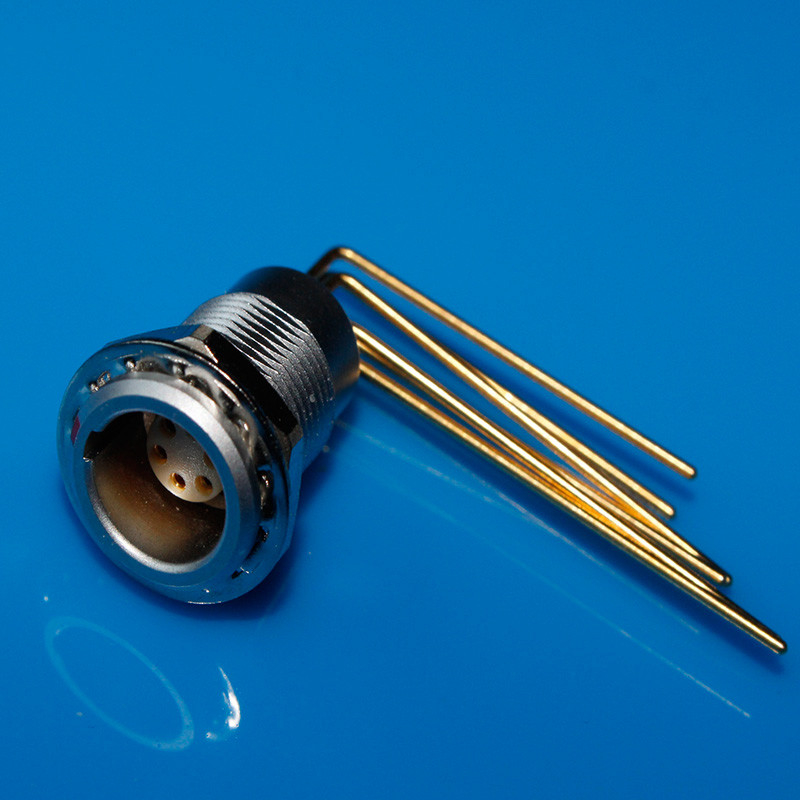

Lemo Compatible1B 6pin right angle Printed Circuit Board Connector For Back Panel Mounting

Lemo Compatible1B 6pin right angle Printed Circuit Board Connector For Back Panel Mounting

  • Lemo Compatible1B 6pin right angle Printed Circuit Board Connector For Back Panel Mounting
Lemo Compatible1B 6pin right angle Printed Circuit Board Connector For Back Panel Mounting
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE,ROHS
Model Number: DCG.1B.306.CLAD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: PP bag
Delivery Time: 5-8workingdays
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Matching Parts: FGG.1B.306.CLAD52 Shell Style: Fixed Receptacle With Two Nuts
Temp (min): -20 Deg C Temp (max): +150 Deg C
IP Rating: IP50 Pin No: 6pin
High Light:

pcb mount circular connector

,

circular pcb connector



Lemo compatible female right angle connector 6pin 1B printed circuit board connector for back panel mounting



Description:



  • Low voltage push-pull connectors for data, signal, electrical and power use!
  • Ebuddy connectors are used in instrumentation, medical devices, and anywhere a high density, high reliability, quick mating connector is needed.
  • These high precision connectors. With a life span greater than 5000 insertions, complete EMC shielding, shock resistance,
  • vibration resitance, and corrosion resistance this is the highest quality connector on the market.
  • B serials : 00B/1B/2B/3B for your option
Contacts No.:
  • 00B sizes: 2, 3 and 4
  • 0B sizes: 2 3 4 5 6 7 and 9
  • 1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 and 14
  • 2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32



PCB Board drilling figure



If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.





Please confirm 1B size and drawing as followings:

Lemo Compatible1B 6pin right angle Printed Circuit Board Connector For Back Panel Mounting 0





Lemo Compatible1B 6pin right angle Printed Circuit Board Connector For Back Panel Mounting 1
