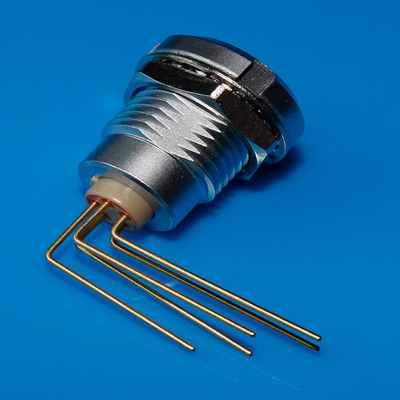

6 Pin Right Angle Printed Circuit Board Connector , PCB Mount Connector

Name: 6 Pin Right Angle Printed Circuit Board Connector , PCB Mount Connector
Brand: Ebuddy Technology Co.,Limited
SKU: DCG.2B.306.CLAD
Price: 23.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	DCG.2B.306.CLAD
MOQ:	1
Price:	Negotiable
Delivery Time:	5-8workingdays
Payment Terms:	T/T, Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Matching Parts:

FGG.2B.306.CLAD52

Shell Style:

Fixed Receptacle With Two Nuts

Endurance (Shell):

5000 Mating Cycles

Housing Material:

Brass (chrome Plated)

Shock Resistance:

100g.6ms

Contact Type:

Print (elbow)

Packaging Details:

PP bag

Supply Ability:

10000pcs per month

Highlight:

pcb mount circular connector

circular pcb connector

Product Description

6 Pin Right Angle Printed Circuit Board Connector

6-pin female 90° PCB connector ECG PCB mounted connector - Lemo alternative 6-pin right angle female socket

Product Features

Smart push-pull self-latching system for secure connections
Multicore types available from 2 to 14 pins
Solder or PCB contact options
High packing density for space-saving installations
Collet nut and socket nut with matching colors to prevent mismatching

PCB Board Drilling Specifications

For custom machine mold requirements, confirm hole size according to your board specifications before selecting connector style. Our connectors are available in different sizes from 00 to 03 to accommodate various board dimensions. For example, if your board panel cut-outs OD is approximately 8-9mm, you should choose 0B size.

Custom Services

Common Model Connectors: We maintain stock for common models with shipping within 3 days
Cable Assembly Service: Custom cable assembly according to your specifications
Technical Support: Professional technical assistance for connector and cable applications
Cable Assembly Solutions: Custom cable assembly solutions tailored to your needs
Customized Connector Service: New mold development for specialized connector requirements

2B Size Specifications

Please confirm 2B size and reference the following technical drawings:
