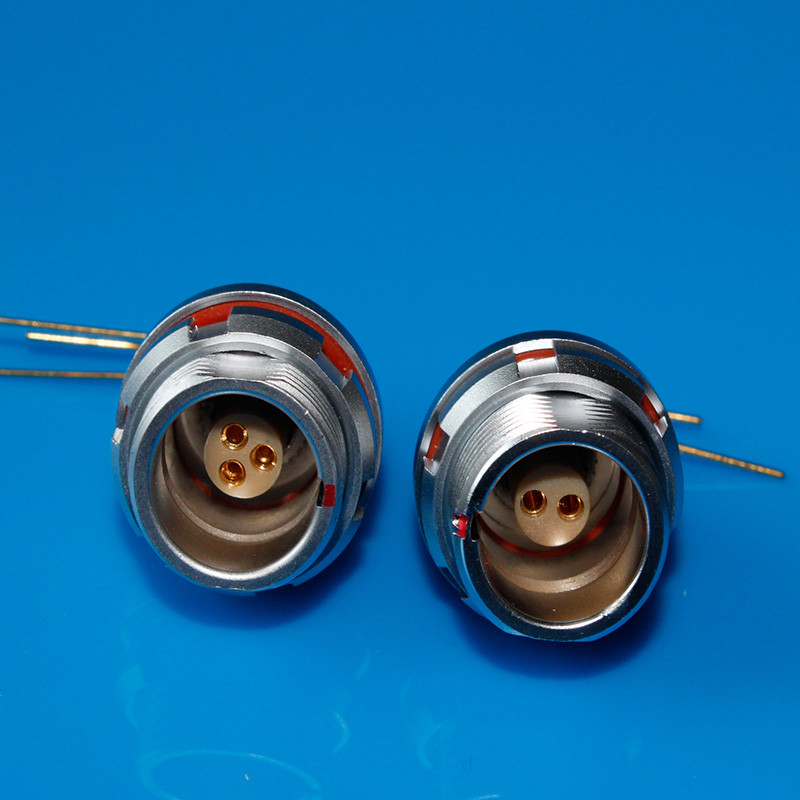

Lemo EEG PCB socket 3pin waterproof circular connector assembled inside receptacle

Lemo EEG PCB socket 3pin waterproof circular connector assembled inside receptacle

  • Lemo EEG PCB socket 3pin waterproof circular connector assembled inside receptacle
Lemo EEG PCB socket 3pin waterproof circular connector assembled inside receptacle
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: EEG.1K.303.CLV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Shell Style/Model: Elbow Contacts For Printed Circuit Housing Material: Brass (chrome Plated)
Max. Matings: 5000 Temp (min / Max): -55°C / +200°C
Contact Type: Print (elbow) IP Rating: IP68
High Light:

waterproof panel mount connector

,

waterproof cable connector





Lemo compatible EEG K serials PCB socket 3pin waterproof circular connector assembled inside receptacle



Description:
  • Termination type:Female print 90° PCB
  • Shell Style/Model: EE*: Fixed receptacle, nut fixing, with elbow contacts for printed circuit (back panel mounting)
  • Contact Type: Print (elbow)
  • Contact Dia.: 1.3 mm (0.051in)
  • R (max): 3.6 mOhm
  • Endurance (Shell): 5000 mating cycles
  • Temp (min / max): -55°C / +200°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Salt Spray Corrosion: >1000 hr
  • Climatical Category: 50/175/21
  • Shielding (min): 95 dB (10 MHz)
  • Shielding (min): 80 dB (1 GHz) IP Rating: 68



Why choose Ebuddy



  • Supply 1year Warranty time
  • Complete compatible with lemo/odu/fischer/hirose connector with lower cost
  • ROHS,ISO9001:2008,UL standard
  • Short delivery time:7-10 days normally
  • Factory can produce 5000 set/week
  • Samples offer to check first



Insulating washer(color wheel):



  • Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.



  • Color options:

Lemo EEG PCB socket 3pin waterproof circular connector assembled inside receptacle 0



Size and Drawing



Lemo EEG PCB socket 3pin waterproof circular connector assembled inside receptacle 1



Lemo EEG PCB socket 3pin waterproof circular connector assembled inside receptacle 2
