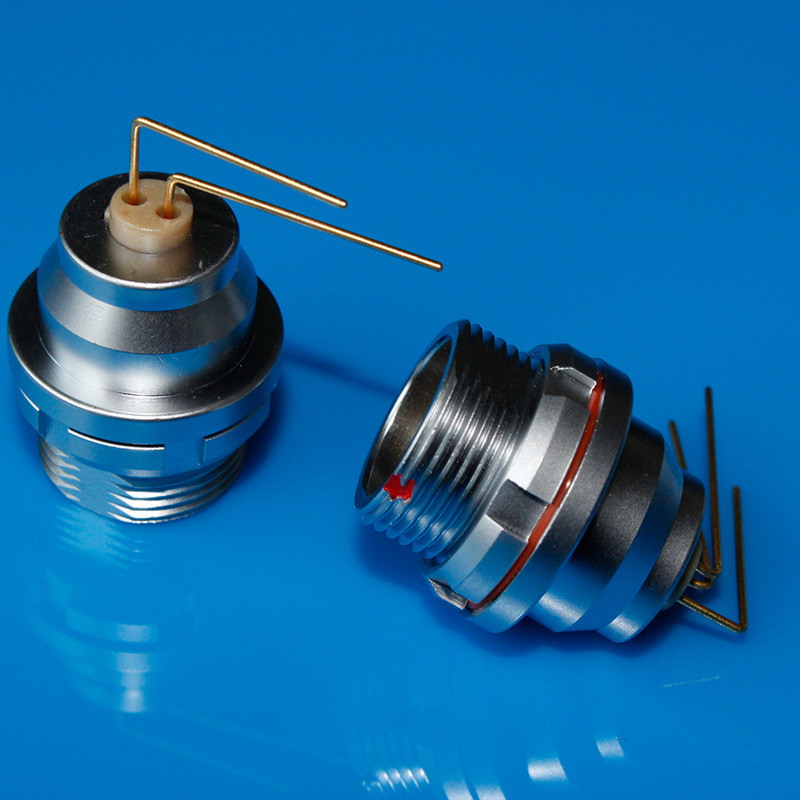

Right angle pin Female print 90° PCB connector waterproof connector Lemo EEG 0K 302

Right angle pin Female print 90° PCB connector waterproof connector Lemo EEG 0K 302

  • Right angle pin Female print 90° PCB connector waterproof connector Lemo EEG 0K 302
Right angle pin Female print 90° PCB connector waterproof connector Lemo EEG 0K 302
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: EEG.0K.302.CLV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T，Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Termination Type: Female Print 90° PCB Matching Parts: FGG.0K.302.CLAC
Housing Material: Brass (chrome Plated) Shell Shell Style: Fixed Receptacle
Contact Type: Print (elbow) Endurance (Shell): 5000 Mating Cycles
High Light:

waterproof panel mount connector

,

waterproof cable connector



Right angle pin Female print 90° PCB connector waterproof connector Lemo EEG 0K 302



Description:
  • Female print 90° PCB connector EEG.0K.303.CLV
  • 0k 1k 2ksize for your option
  • Push pull self-locking style, easy for lacking and mating
  • Pins: 2pin / 3pin / 4pin / 5pin / 6pin / 7pin / 8pin / 9pin / 10pin / 12pin / 14pin / 16pin / 19pin
  • IP68, waterproof and dust-proof
  • Fast delivery time: 3-5working days for usual models
  • Cable collet diameter: 2.6mm-7.0mm
  • Warranty time: 1year, any problems in warranty time, we will fix it or replace new one for free



Cable collet size for your option:



　 Collet No. Cable OD
0K Type Coding Max Min
C 30 3.0 2.6
C 40 4.0 3.6
C 45 4.5 4.1
C 50 5.0 4.6





Technical specifications:



OTHER CHARACTERISTICS
Endurance (Shell) 5000 mating cycles
Temp (min) -20 deg C
Temp (max) +150 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
IP Rating 68


Why choose Ebuddy



  • Supply 1year  Warranty time
  • Complete compatible with lemo/odu/fischer/hirose connector with lower cost
  • ROHS,ISO9001:2008,UL standard
  • Short delivery time:7-10 days normally
  • Factory can produce 5000 set/week
  • Samples offer to check first



Size and Drawing



Right angle pin Female print 90° PCB connector waterproof connector Lemo EEG 0K 302 0



Right angle pin Female print 90° PCB connector waterproof connector Lemo EEG 0K 302 1
