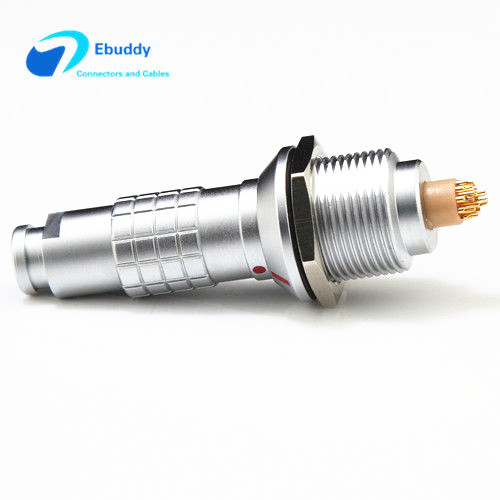

Push Pull Circular Connector Lemo K Series 0K 2pin Male Plug Connector

Push Pull Circular Connector Lemo K Series 0K 2pin Male Plug Connector

  • Push Pull Circular Connector Lemo K Series 0K 2pin Male Plug Connector
  • Push Pull Circular Connector Lemo K Series 0K 2pin Male Plug Connector
Push Pull Circular Connector Lemo K Series 0K 2pin Male Plug Connector
Product Details:
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: HGG.0K.302.CLAC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Shell Style: FGG Plug With Cable Collet Keying: Alpha=0
Pin No: 2-32pin/Multi Pin Rated Current: 10A
Endurance (Shell): 5000 Mating Cycles Configuration: Brass (gold Plated)
High Light:

lemo circular connectors

,

lemo fiber optic connectors



Waterproof circular connector Lemo push pull IP68 K serials connector 0K 2pin male plug



Technical Specifications
  • Series: FGG*: Straight plug
  • Keying: G key fixing, 0°
  • Insulator: PPS
  • Housing Material:Brass chrome plated
  • Insert:1B.305 : 5 Low Voltage
  • Configuration:Brass (gold plated)
  • Insulator:P:PPS
  • Contact Dia:0.9 mm
  • Bucket Dia:0.8 mm

  • Max. Solid Conductor:0.34 mm^2 (AWG 22)

  • Max. Stranded Conductor:0.34 mm^2 (AWG 22)

  • Specifications: Low Voltage
  • Vtest (AC):1600 V
  • Rated Current: 10A



Cable collet size for your option:
  • C30: OD=2.6---3.0mm
  • C40: OD=3.6---4.0mm
  • C45: OD=4.1---4.5mm
  • C50: OD=4.6---5.0mm



Other Technical specifications:



OTHER CHARACTERISTICS
Endurance (Shell) 5000 mating cycles
Temp (min) -20 deg C
Temp (max) +150 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
IP Rating 68


FAQ



1.How to choose connector you want?

(kindly tell us lemo connector model number or connector size and pins number you want)



2.How to pay us?

(We accept paypal,TT,westunion etc payment terms)



3.How we ship goods?

(By DHL,FEDEX,UPS etc pr you can choose your own express)



4.If i have a male or female lemo connector,could i use EBUDDY connector instead?

(Yes, our connectors are totally compatible with lemo connector)



5.How about delivery time of Ebuddy?

(Usually 5-8 days after received payment)



Corlorful Sleeve (Jacket):



Specification:

  • Material: Polyurethane material(PU)
  • Temperature range: -40°--- +80°
  • Color: Black, Red, Blue, White, Yellow, Green
  • Size: 00B/0B/1B/2B, 0K/1K/2K
  • Cable OD Range: 3.1mm—8.2mm

    Push Pull Circular Connector Lemo K Series 0K 2pin Male Plug Connector 0

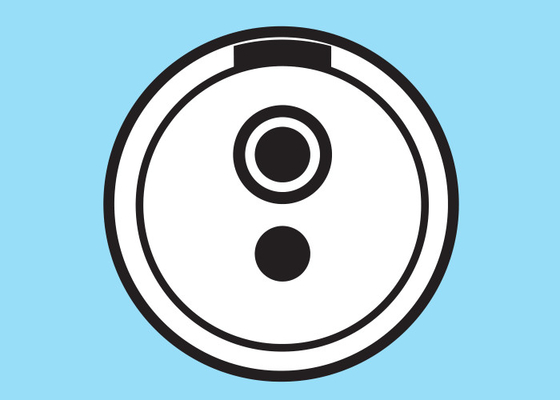

Size and Drawing

Push Pull Circular Connector Lemo K Series 0K 2pin Male Plug Connector 1

          Push Pull Circular Connector Lemo K Series 0K 2pin Male Plug Connector 2
