IP68 Lemo K Series Circular Connector With Printed Circuit Board Socket

Name: IP68 Lemo K Series Circular Connector With Printed Circuit Board Socket
Brand: Ebuddy Technology Co.,Limited
SKU: EEG.2K.303.CLV
Price: 0.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	EEG.2K.303.CLV
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Contact Type:

R (max):

3.3 MOhm

Humidity (max):

<=95% [at 60 Deg C /140 F]

Climatical Category:

50/175/21

Rated Current:

12 Amps

IP Rating:

IP68

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

lemo circular connectors

lemo triax connectors

Product Description

IP68 Lemo K Series Circular Connector With Printed Circuit Board Socket

Product Overview

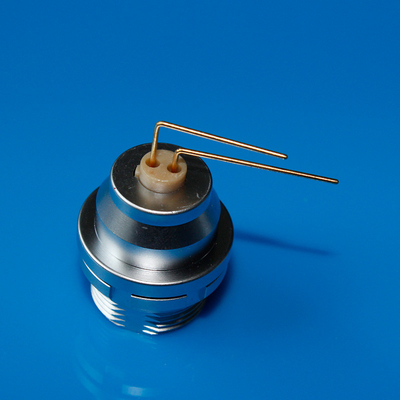

2-pin waterproof circular connector EEG 2K size 2-pin female PCB socket with O-rings, designed for reliable performance in demanding environments.

Technical Specifications

Contact Type	Print (elbow)
Shell Style/Model	Fixed receptacle, nut fixing, with elbow contacts for printed circuit (back panel mounting)
Max. Matings	5000
Termination type	Female print 90° PCB
Configuration	2K.302 : 2 Low Voltage
Max. Solid Conductor	0.34 mm² (AWG 22)
Max. Stranded Conductor	0.34 mm² (AWG 22)
R (max)	3.3mOhm
Vtest (AC)	2500 V
Rated Current	12 A

Available Contact Configurations

00B sizes: 2, 3 and 4 contacts
0B sizes: 2, 3, 4, 5, 6, 7 and 9 contacts
1B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 14, 16 contacts
2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19, 26, 32 contacts

Industry Applications

Medical Equipment
Defense Security Systems
Instrumentation
Transportation
Industrial Automation
Energy Systems
Broadcast Equipment
Audio/Video Systems

Insulating Washer Features

When your plug and socket need to be attached to the board, install an insulating washer to maintain potential between different conductors.

Color Options

Dimensions and Technical Drawings
