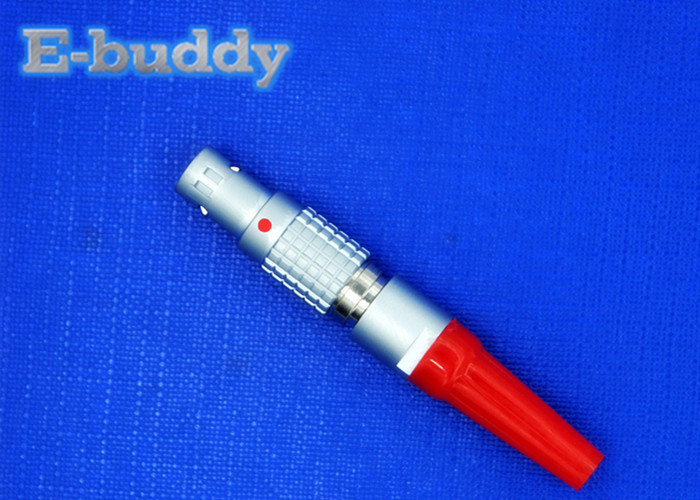

FGA 30 Degree 2 Keys Fixing Lemo Push Pull Circular Connector FGA 0B 306 6 Pin Plug

Name: FGA 30 Degree 2 Keys Fixing Lemo Push Pull Circular Connector FGA 0B 306 6 Pin Plug
Brand: Ebuddy Technology Co.,Limited
SKU: DGA.0B.306.CLA
Price: 6.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	DGA.0B.306.CLA
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Keying:

2 Keys (alpha=30)

Housing Material:

Brass (chrome Plated)

Endurance (Shell):

5000 Mating Cycles

Contact Dia:

0.5 Mm (0.02in)

Specifications:

Low Voltage

R (max):

8.7 MOhm

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

micro circular connectors

multi pin electrical connectors

Product Description

FGA 30 degree 2 keys fixing Lemo push pull circular connector FGA 0B 306 6pin plug

Description:

FGA push pull circular connectors
Soder tyle, can do cable assembly
0B/1B/2B size for your option
1 year warranty time
Fast delivery: usually 3-5days

Technical Details:

Shell Style/Model : FG*: Straight plug, cable collet and nut for fitting a bend relief
Keying: 2 keys (alpha=30, plug: male contacts, receptacle: female contacts)
Housing Material : Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration: 0B.306 : 6 Low Voltage
Rated Current: 2.5 Amps
Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 0.5 mm (0.02in)
Bucket Dia.: 0.45 mm (0.018in)
Max. Solid Conductor: 0.09 mm^2 (AWG 28)
Max. Stranded Conductor: 0.09 mm^2 (AWG 28)
R (max): 8.7 mOhm
Vtest (contact-shell): 650 V (AC), 920 V (DC)
Vtest (contact-contact): 850 V (AC), 1200 V (DC)

Corlorful Sleeve (Jacket):

Specification:
Material: Polyurethane material(PU)
Temperature range: -40°--- +80°
Color: Black, Red, Blue, White, Yellow, Green
Size: 00B/0B/1B/2B, 0K/1K/2K
Cable OD Range: 3.1mm—8.2mm

Size and Drawing:

FGA 30 Degree 2 Keys Fixing Lemo Push Pull Circular Connector FGA 0B 306 6 Pin Plug 0

FGA 30 Degree 2 Keys Fixing Lemo Push Pull Circular Connector FGA 0B 306 6 Pin Plug 1
