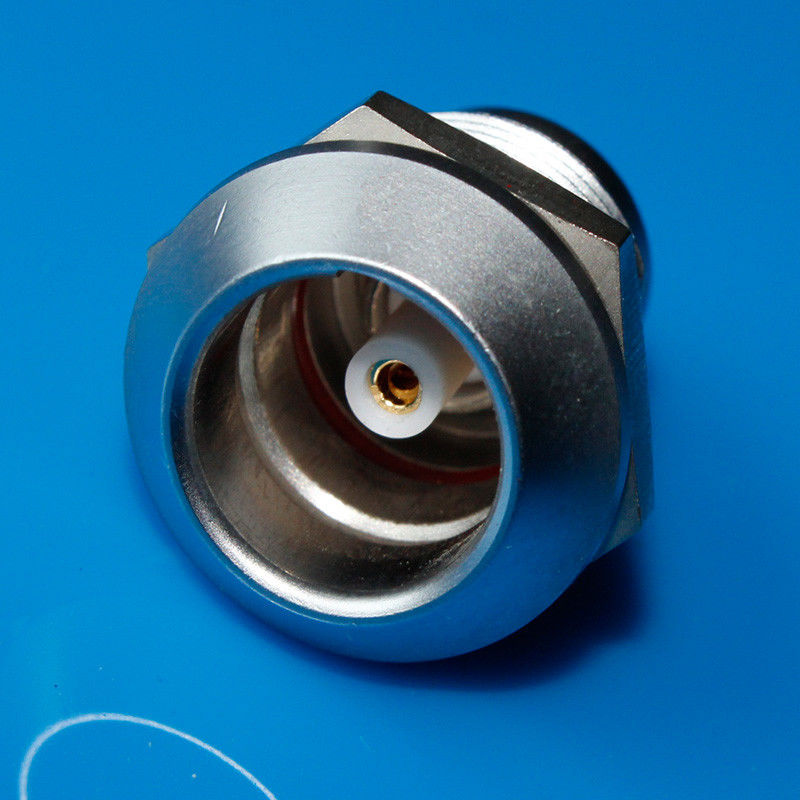

Lemo Coaxial Connector ERA.0E.250.CLL

Name: Lemo Coaxial Connector ERA.0E.250.CLL
Brand: Ebuddy Technology Co.,Limited
SKU: ERA.0E.250.CLL
Price: 13.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	ERA.0E.250.CLL
MOQ:	1
Price:	USD6-20/PC
Delivery Time:	5-8workingdays
Payment Terms:	T/T,Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

IP Rating:

IP68

Shell Style/Model:

ERA*: Fixed Receptacle

Configuration:

0E.250 : 1 Coax (50 Ohm)

Keying:

Circular (can Rotate)

Impedance:

50 Ohm

Endurance (Shell):

5000 Mating Cycles

Packaging Details:

PP bag

Supply Ability:

10000pcs per month

Highlight:

lemo audio connector

lemo power connector

50Ohm Lemo Coaxial Connector

Product Description

Lemo Coaxial Connector ERA.0E.250.CLL

Lemo alternative 0E series 50 Ohm Coaxial cable connectors ERA.0E.250.CLL

Product Specifications

Specification	Details
Shell Style/Model	ERA*: Fixed receptacle, nut fixing
Keying	Circular (can rotate), plug has male contact(s)
Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration	0E.250 : 1 Coax (50 Ohm)
Rated Current	6 Amps
Contact Type	Coaxial 50 Ohm (Solder)
Max. Matings	1000
Contact Diameter	0.9 mm (0.035in)
Bucket Diameter	1 mm (0.039in)
Test Voltage	3000 V (AC), 4200 V (DC)
Impedance	50 Ohm
VSWR	1.02 + 0.25 * f/GHz
Compatible Cable Types	RG 178 B/U, RG 196 A/U, RG 188 A/U, RG 316 B/U, RG 174 A/U, HF-2114, RG 122 /U

Applications

Medical
Defense Security
Instrumentation
Transportation
Industry
Energy
Broadcast
Audio/Video

Waterproof IP Ratings

Our connectors are available in two primary IP ratings: IP50 and IP68. For IP50 rated products, choose our Lemo B series. For higher IP68 protection, select Lemo K series or S series connectors.

IP50 Rating

Dust-proof: Completely prevents foreign object invasion; while not completely dust-tight, dust intrusion will not affect normal operation
Waterproof: No special protection against water or moisture

IP68 Rating

Dust-proof: Completely prevents foreign objects and dust intrusion
Waterproof: Can be completely immersed in water; test conditions determined by manufacturers and users

Benefits of Compatible Connectors

100% compatible with Lemo connectors
Save at least 30% on costs
Cable assembly services available to reduce production time

Technical Drawings

Please confirm dimensions and specifications using the following technical drawings:

Lemo Coaxial Connector ERA.0E.250.CLL 0
