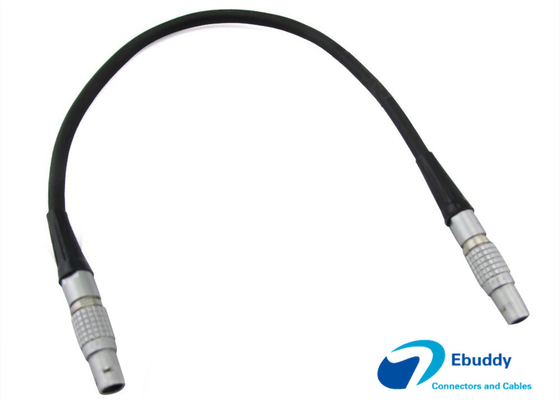

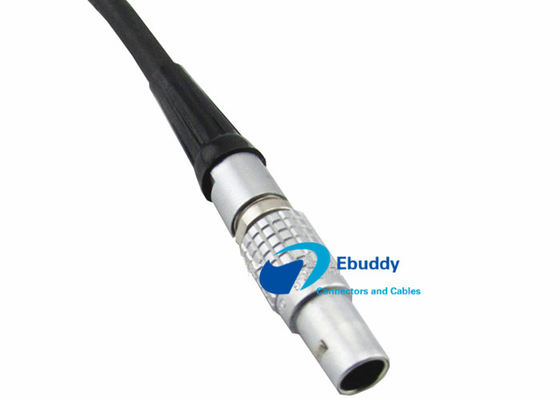

Custom Cables Assembly FGG 1B 307 for RED TOUCH 7inch LCD Broadcast cameras

• Type: Adapter
• Application: Audio & Video
• Gender: male and female, male
• Screw Material: Brass
• Pin number: 1~10
• termination: solder type
• Waterproof rating: IP67
• Shielded: without shielded
• Temperature: -25℃~+125℃
• Contact plating: Gold
• Rated Voltage: 250V(6,8pins)
• Rated current: 3A(6,8pins

• Broadcast cameras
• Control equipment
• Audio equipment
• Outside Broadcast
• Audio & Video
• Communications
• Machines

• 1)We are mainly focusing on custom cable and connectors manufacture.
• 2):Excellent Technique and Design team with more than 7 years experiences.
• 3):Excellent quality:all products can have UL TUV CE ROHS etc.
• 4):Low price: we can help you reduce purchase at least 30% cost .
• 5):Delivery time: 3~15 days, On-Time delivery.
• 6):Help customers find the non-standard products.
• 7):1pc OEM & ODM business ability.
• 8):Small order is acceptable.
• 9):We have professional and enthusiastic sales team, to give you nice and warm service.

Lemo B serials:

1. Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
2. Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
3. put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
4. pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
5. Screw the collet nut tightly
6. Hitch the sleeve to the corresponding step of collet nut.
