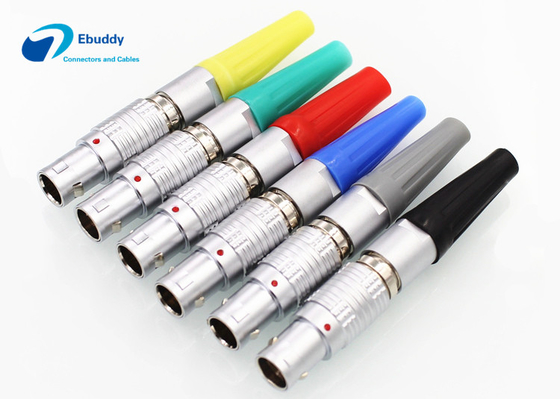

Cable connector Lemo alternative push pull circular male plug 1B 3pin male connectors
| Collet No. | Cable OD | |||
| 1B | Type | coding | Max | Min |
| M | 31 | 3 | 2.6 | |
| D | 42 | 4.0 | 3.1 | |
| D | 52 | 5.0 | 4.1 | |
| D | 62 | 6.0 | 5.1 | |
| D | 72 | 7.0 | 6.1 | |
| PERFORMANCE DETAILS | ||
| Insert | 1B.303 :3Low Voltage | |
| Configuration | Brass (gold plated) | |
| Insulator | P:PPS | |
| Specifications | Low Voltage | |
| Contact Type | Solder | |
| Max. Matings | 5000 | |
| Contact Dia | 1.3 mm | |
| Bucket Dia1 | mm | |
| Max. Solid Conductor | 0.5 mm^2 (AWG 20) | |
| Max. Stranded Conductor | 0.5 mm^2 (AWG 20) | |
| R (max) | 3.6mOhm | |
| Vtest (AC) | 1600 V | |
| Rated Current | 12 A | |
| OTHER CHARACTERISTICS | ||
| Endurance (Shell) | 5000 mating cycles | |
| Temp (min) | -20 deg C | |
| Temp (max) | +150 deg C | |
| Humidity (max) | <=95% [at 60 deg C / 140 F] | |
| IP Rating | 50 | |
1.Complete compatible with lemo/odu/fischer/hirose connector with lower cost
2.ROHS,ISO9001:2008,UL standard
3.Short delivery time:7-10 days normally
4.Factory can produce 5000 set/week
5.Samples offer to check first
