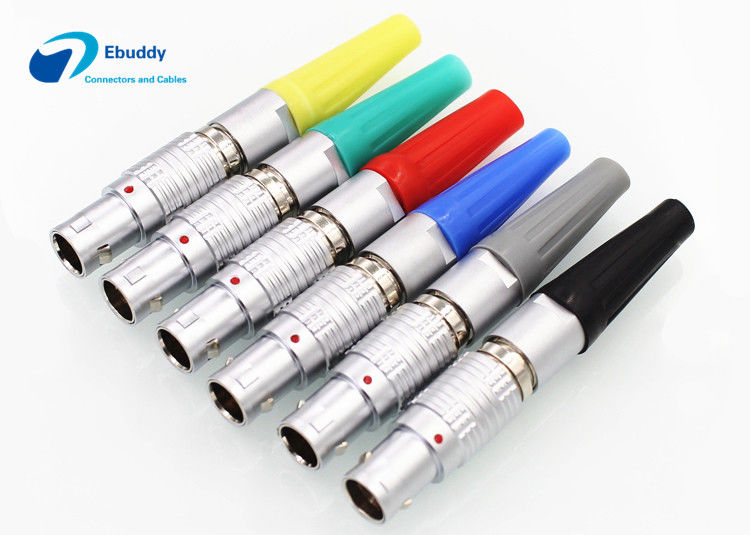

Lemo 1B 3pin Male Connectors

Name: Lemo 1B 3pin Male Connectors
Brand: Ebuddy Technology Co.,Limited
SKU: HGG.1B.303.CLAD
Price: 0.5 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	HGG.1B.303.CLAD
MOQ:	1
Price:	0.5USD
Payment Terms:	Western Union,T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Shell Style:

Straight Plug With Cable Collet

Keying:

1 Key (alpha=0)

Housing Material:

Brass (chrome Plated) Shell

Rated Current:

15A

Max. Matings: 5000:

5000

IP Rating:

IP50

R (max):

3.6 MOhm

Configuration:

Brass (gold Plated)

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

lemo compatible connector

7 pin cable connectors

Male Plug 1B 3pin Male Connectors

Product Description

Lemo 1B 3pin Male Connectors

High-quality cable connector alternative to Lemo push-pull circular male plug 1B 3pin connectors. Designed for reliable performance in industrial applications.

Product Overview

Compatible B-series connector replacement for cable-to-cable connections
Available with free socket and inline connector options
Multiple angle configurations: 30°, 45°, 60°, 90°, 135°
Plating options: white or black chrome finishes

Cable Collet Specifications

Collet No.	Type	Coding	Max OD (mm)	Min OD (mm)
1B	M	31	3.0	2.6
1B	D	42	4.0	3.1
1B	D	52	5.0	4.1
1B	D	62	6.0	5.1
1B	D	72	7.0	6.1

Technical Specifications

Insert Configuration 1B.303 : 3 Low Voltage

Contact Material Brass (gold plated)

Insulator Material PPS

Specifications Low Voltage

Contact Type Solder

Maximum Matings 5000 cycles

Contact Diameter 1.3 mm

Maximum Solid Conductor 0.5 mm² (AWG 20)

Maximum Stranded Conductor 0.5 mm² (AWG 20)

Maximum Resistance 3.6 mΩ

Test Voltage (AC) 1600 V

Rated Current 12 A

Shell Endurance 5000 mating cycles

Temperature Range -20°C to +150°C

Maximum Humidity ≤95% at 60°C / 140°F

IP Rating IP50

Why Choose Ebuddy Connectors

Complete compatibility with Lemo/ODU/Fischer connectors at lower cost
Certified to ROHS, ISO9001:2008, and UL standards
Short delivery time: 7-10 days typically
Factory production capacity: 5000 sets per week
Sample units available for quality verification

Product Dimensions & Drawings
