Created with Pixso. 5 Pin 90 Degree Push Pull Circular Connectors Lemo FHG Right Angle Plug FHG.0B.305
Name
  • Name
  • Name

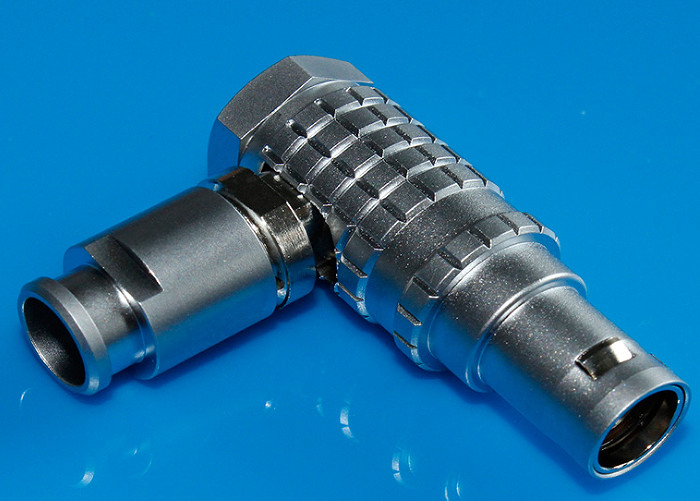

5 Pin 90 Degree Push Pull Circular Connectors Lemo FHG Right Angle Plug FHG.0B.305

Brand Name: Ebuddy
Model Number: FHG.0B.305
MOQ: 1
Price: Negotiable
Delivery Time: 5-8workingdays
Payment Terms: T/T, Paypal,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS
IP Rating:
IP50
Application:
Power Supply
Contact Type:
Solder
Endurance (Shell):
5000 Mating Cycles
Cable Fixing:
OD=2.1mm--5.0mm
Shell Style:
Right Angle Plug
Packaging Details:
PP bag
Supply Ability:
10000pcs per month
Highlight:

industrial circular connectors

,

micro circular connectors

Product Description



Lemo FHG 5pin connector push pull 5pin right angle plug FHG.0B.305.CLAD



Specifications:
  • Size: 0B
  • Series: FHG*: right angle male plug
  • Keying: 1key fixing, 0 degree
  • Housing Material:Brass chrome plated
  • Insert: 0B.302: 2 Low Voltage
  • Configuration:Brass (gold plated)
  • Right angle style, avoid cable damage and save space

Cable clamp for your options:





　 Collet No. Cable OD
0B Type coding Max Min
D 32 3.0 2.1
D 42 4.0 3.1
D 52 5.0 4.1





Corlorful Sleeve (Jacket)



  • Material: Polyurethane material(PU)
  • Temperature range: -40°--- +80°
  • Color: Black, Red, Blue, White, Yellow, Green
  • Size: 00B/0B/1B/2B, 0K/1K/2K
  • Cable OD Range: 3.1mm—8.2mm

5 Pin 90 Degree Push Pull Circular Connectors Lemo FHG Right Angle Plug FHG.0B.305 0



Why you need buy compatible connector:
  • 100% compatible lemo connector,
  • Help you save at least 30% cost
  • Cable assembly offer,help you save production time.



Please confirm 0B size and drawing as followings:



5 Pin 90 Degree Push Pull Circular Connectors Lemo FHG Right Angle Plug FHG.0B.305 1



5 Pin 90 Degree Push Pull Circular Connectors Lemo FHG Right Angle Plug FHG.0B.305 2
