Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket

1pcs
MOQ
Negotiable
Price
Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket
Features Gallery Product Description Request A Quote
Features
Specifications
Pin: 10pin
Size: Lemo 2B
Contact: Male And Female
Warranty: 1 Year
Endurance (Shell): 5000 Mating Cycles
IP Rating: 50
Highlight:

lemo compatible connector

,

7 pin cable connectors

,

Lemo Circular Push Pull Cable Connector

Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE,ROHS
Model Number: EY-PB55
Payment & Shipping Terms
Packaging Details: PP bag
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 900000pcs per month
Product Description



Lemo circular push pull 10pin FGG EGG 2B size plug and socket





Technical Details:



  • Shell Style/Model: FGG: Straight plug, cable collet
  • Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
  • Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
  • Configuration: 2B.310 : 10 Low Voltage
  • Contact Type: Solder
  • Max. Matings: 5000
  • Contact Dia.: 0.9 mm (0.035in)
  • Bucket Dia.: 0.8 mm (0.031in)
  • Max. Solid Conductor: 0.34 mm^2 (AWG 22)
  • Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
  • R (max): 4.8 mOhm
  • Vtest (contact-shell): 1300 V (AC), 1840 V (DC)
  • Vtest (contact-contact): 1450 V (AC), 2050 V (DC)





Others specification:



  • Temp (min / max): -55°C / +250°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Salt Spray Corrosion: >1000 hr
  • Climatical Category: 50/175/21 Shielding (min): 75 dB (10 MHz)
  • Shielding (min): 40 dB (1 GHz)
  • IP Rating: 50

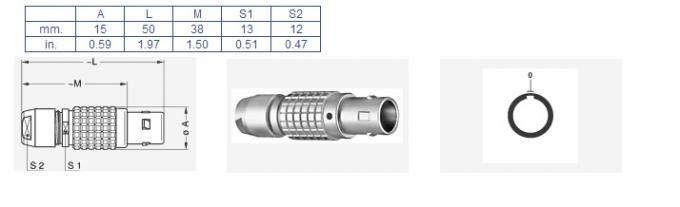

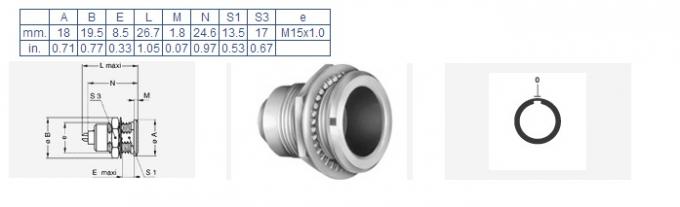

Size and drawing:



Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket 0



Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket 1



Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket 2



Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket 3
