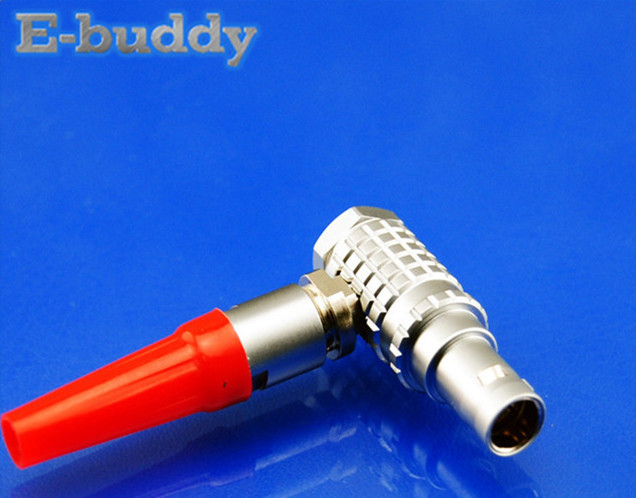

Lemo Compatible Connector FHG 00B 0B 1B 2B Right Angle Circular Cable Connector 90 Degree Male Plug

Name: Lemo Compatible Connector FHG 00B 0B 1B 2B Right Angle Circular Cable Connector 90 Degree Male Plug
Brand: Ebuddy Technology Co.,Limited
SKU: FHG.1B.302.CLAD
Price: 4.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FHG.1B.302.CLAD
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Series:

FGG*: Straight Plug

Shell Style:

Right Angle Connector

Contact Type:

Cable Welding

IP Rating:

IP50

Termination Type:

Male Solder

Insert:

1B.302 : 2 Low Voltage

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

circular din connector

circular electrical connectors

Product Description

Lemo Compatible Right Angle Circular Cable Connector

FHG 00B 0B 1B 2B 90-degree male plug connector with push-pull self-locking mechanism for secure and easy mating/unmating operations.

Technical Specifications

FHG 1B 302 2-pin right angle male connector configuration
Push-pull self-locking mechanism ensures secure connections and easy operation
100% compatible with Lemo and Fischer connector systems
1-year warranty with free repairs or replacements
Available sleeve colors: Black, Red, Blue, White, Yellow, Green
Fast delivery: 3-5 working days for standard models

Custom Services

Common Model Inventory: Standard models ship within 3 days
Cable Assembly Service: Custom cable assemblies to your specifications
Technical Support: Professional assistance for connector and cable applications
Cable Assembly Solutions: Custom solutions tailored to your requirements
Custom Connector Development: New mold development for specialized applications

Cable Collet Specifications

Collet No.	Cable OD Type	Coding	Max (mm)	Min (mm)
1B	M	31	3	2.6
	D	42	4.0	3.1
	D	52	5.0	4.1
	D	62	6.0	5.1
	D	72	7.0	6.1

Cable Assembly Procedure

Thread cable through sleeve collet nut in sequence, then solder cable wires to insulator one by one, noting wire order carefully
Install split insert carrier onto soldered insulator, ensuring carrier slot aligns perfectly with insulator subassembly heave
Position collet on cable, ensuring collet heave mates with split insert carrier slot
Insert insulator subassembly, split insert carrier, and collet into outer shell in sequence, ensuring split insert carrier heave mates with outer shell slot
Tighten collet nut securely
Attach sleeve to corresponding step of collet nut

Dimensions and Technical Drawings
