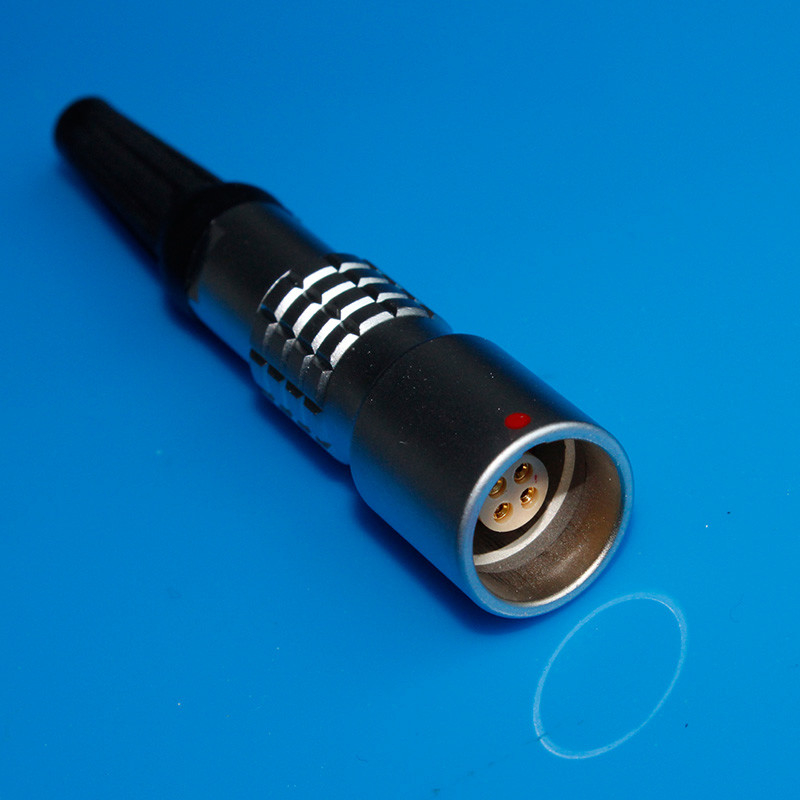

4pin PHG Female Connector Lemo 1K Size Waterproof Circular Connectors Cable Welding Female Plug

Name

4pin PHG Female Connector Lemo 1K Size Waterproof Circular Connectors Cable Welding Female Plug

Brand Name:	Ebuddy
Model Number:	PHG.1K.304.CLLC
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Contact Type:

Female Solder

Keying:

1 Key (alpha=0)

Configuration:

0K.306 : 6 Low Voltage

Rated Current:

2.5 Amps

Max. Matings:

5000

IP Rating:

IP68

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

waterproof panel mount connector

,

waterproof cable connector

,

4pin PHG Female Connector

Product Description

4pin PHG female connector Lemo 1K size waterproof circular connectors cable welding female plug

Description:

Termination type : Female solder
IP rating: IP68
Matching parts: FGG.1K.304.CLAC30
Shell Style/Model:PH*: Free receptacle, cable collet
Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration:1K.304 : 4 Low Voltage
Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 0.9 mm (0.035in)
Bucket Dia.: 0.8 mm (0.031in)
Max. Solid Conductor: 0.34 mm^2 (AWG 22)
Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
R (max): 4.8 mOhm
Vtest (contact-shell): 1450 V (AC), 2050 V (DC)
Vtest (contact-contact): 1350 V (AC), 1910 V (DC)

Application :

Medical
Defense Security
Instrumentation
Transportation
Industry
Energy
Broadcast
Audio/video

1K Cable collet size

C45: OD=4.1---4.5mm
C50: OD=4.6---5.0mm
C55: OD=5.0---5.5mm
C60: OD=5.6---6.0mm
K70: OD=6.6---7.0mm

Size and Drawing

4pin PHG Female Connector Lemo 1K Size Waterproof Circular Connectors Cable Welding Female Plug 0

4pin PHG Female Connector Lemo 1K Size Waterproof Circular Connectors Cable Welding Female Plug 1
