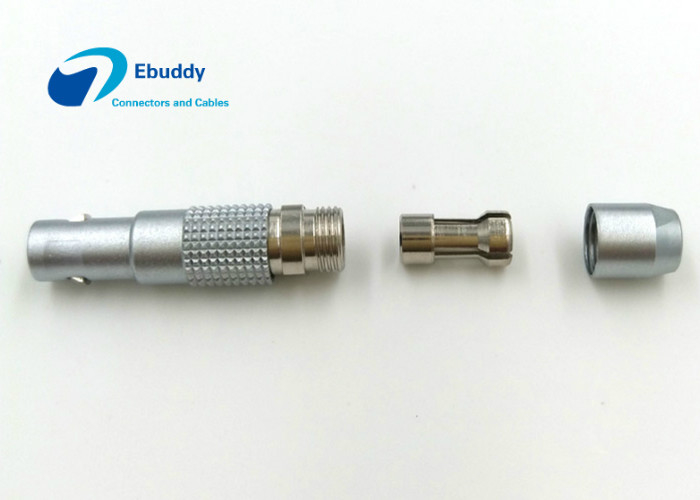

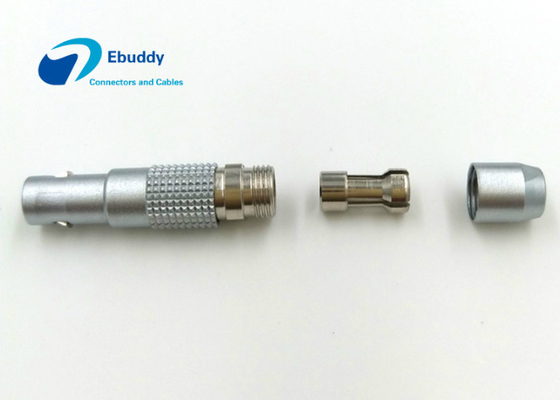

2 Pin 3 Pin 4 Pin 5 Pin Lemo Cable Connector Lemo 00B FGG Male Plug

Name: 2 Pin 3 Pin 4 Pin 5 Pin Lemo Cable Connector Lemo 00B FGG Male Plug
Brand: Ebuddy Technology Co.,Limited
SKU: EY-PB-18
Price: 22.30 USD
Availability: InStock

Brand Name:	OEM
Model Number:	EY-PB-18
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	3-10 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Size:

Lemo 00B

Configuration:

Brass (gold Plated)

Insulator:

P:PPS

Contact Type:

Solder

Endurance (Shell):

5000 Mating Cycles

IP Rating:

Packaging Details:

PP bag

Supply Ability:

900000pcs per month

Highlight:

10 pin lemo connector

multiple wire connectors

Product Description

Lemo 00B Cable Connector - 2 Pin, 3 Pin, 4 Pin, 5 Pin FGG Male Plug

Professional Lemo 00B series cable connectors available in 2, 3, 4, and 5 pin configurations with FGG straight style male plugs. FHG right angle style also available upon request.

Product Features

Lemo 00B 2, 3, 4, 5 pin cable connectors
Solder type design suitable for cable assembly
FGG straight style with FHG right angle style available
Multiple pin configurations for various applications
Fast delivery: 3-5 working days for standard models
Applications: Camera, medical, instrumentation, industrial, and energy sectors

Custom Cable Assembly Service

Our professional cable assembly services include:

Engineering evaluation of your specific requirements
100% testing before shipping
Small quantity orders welcome
Overmold options available

Minimum Order Quantity: 1 piece available

Assembly Process Requirements

Before cable assembly, please confirm the following specifications:

Cable application (power or signal transmission)
Cable length and outer diameter (OD)
Connector specifications for both ends
Wire connection diagram (our engineers will provide detailed schematics)

DIY Cable Assembly Process

Thread cable through sleeve collet nut, then solder wires to insulator one by one (note wire order carefully)
Install split insert carrier onto soldered insulator, ensuring carrier slots align with insulator subassembly
Position collet on cable, aligning collet heave with split insert carrier slots
Assemble insulator subassembly, split insert carrier, and collet into outer shell in sequence
Tighten collet nut securely
Attach sleeve to corresponding step of collet nut

Dimensions and Technical Drawings
