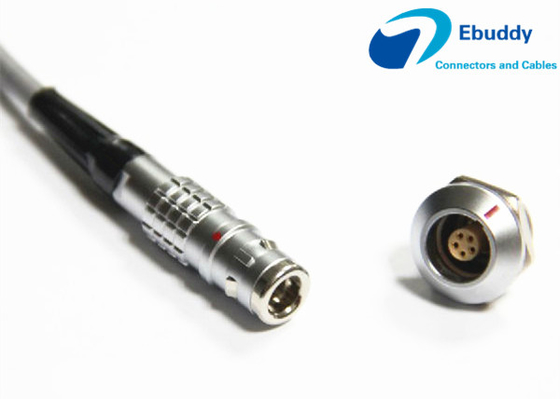

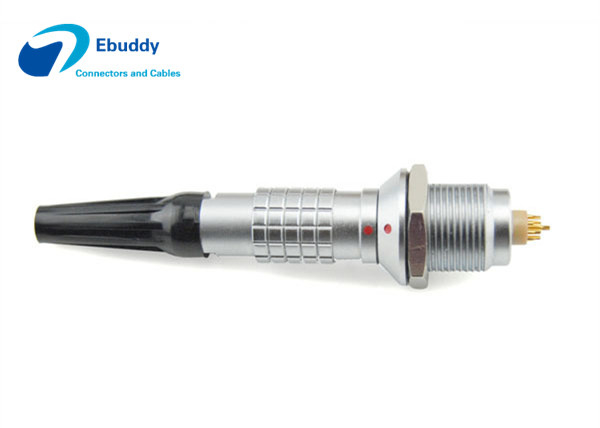

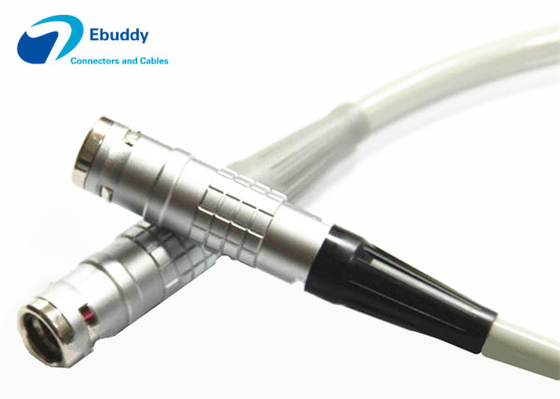

Waterproof IP68 Compatible Lemo Connector 1K Size Push pull circular Connectors

Name: Waterproof IP68 Compatible Lemo Connector 1K Size Push pull circular Connectors
Brand: Ebuddy Technology Co.,Limited
SKU: FGG.1K.305
Price: 0.50 USD
Availability: InStock

Brand Name:	OEM
Model Number:	FGG.1K.305
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-7 working days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Gender:

Male And Female

Size:

Insulator:

PEEK

Waterproof Grade:

IP68

Bend Relief:

Optional

Contact Type:

Solder

Packaging Details:

PP bag

Supply Ability:

90000pcs per month

Highlight:

lemo circular connectors

lemo fiber optic connectors

Product Description

Waterproof IP68 Compatible Lemo Connector 1K Size Push pull circular Connectors

Main Features:

– Security of the Push-Pull latching system
– Unipole types transmitting current up to 230 A and multipole types with up to 106 contacts
– Wide range of models satisfying most applications
– 360° screening for full EMC shielding
– Watertight connection (IP 68/IP 66)
– Polarization by stepped insert (half-moon) contacts fitted with male and female contacts
– Solder or print contacts (straight or elbow)
– Rugged housing for extreme working condition.

Technical Specifications:

Characteristics	Value
Insert Configuration	1K.120 : 1 Low Voltage
Contact Dia.	0.5 mm (0.028in)
Bucket Dia.	0.45mm (0.031in)
Max. Stranded Conductor	0.09 mm^2 (AWG 22)
Max. Conductor	0.09mm^2 (AWG 22)
Vtest (contact-shell )	1700 V (AC), 2400 V (DC)
Vtest (contact-contact )	800 V (AC), 1130 V (DC)
Rated Current	18A (AC/DC)

Other Details:

Characteristics	Value
Max.Mating	> 5000 cycles
Humidity	up to 95% at 60° C
Temperature range	- 55° C, +250° C
Vibration	15 g (10-2000 Hz)
Shock resistance	100 g, 6 ms
Salt spray corrosion test	> 144h
Shielding efficiency	at 10 MHz > 75 dB at 1 GHz > 40 dB

Application :

Ebuddy connectors are found in a variety of challenging applications and environments including:

Size and Drawing

Waterproof IP68 Compatible Lemo Connector 1K Size Push pull circular Connectors 1

Package:

Waterproof IP68 Compatible Lemo Connector 1K Size Push pull circular Connectors 2
