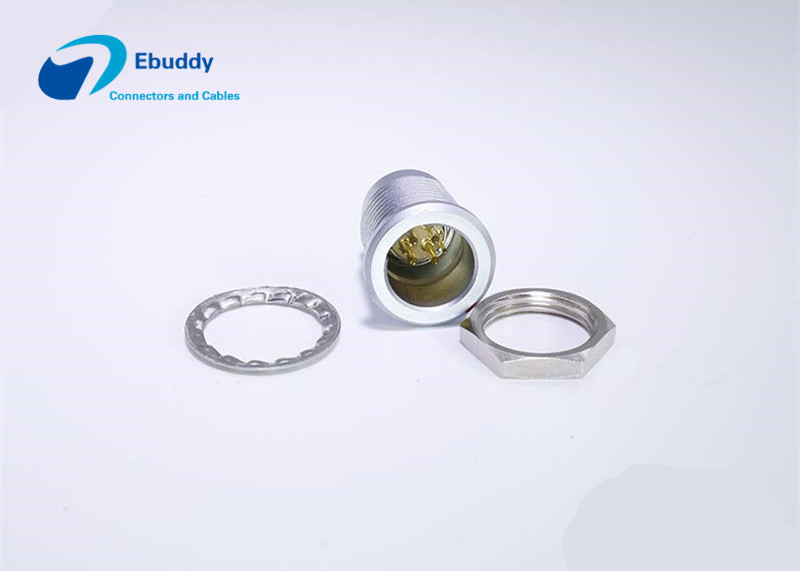

Compatible Lemo B Series Connectors EAJ 6 Pin RED EPIC Power Socket EAJ.1B.306

Name: Compatible Lemo B Series Connectors EAJ 6 Pin RED EPIC Power Socket EAJ.1B.306
Brand: Ebuddy Technology Co.,Limited
SKU: EAJ.1B.306
Price: 22.30 USD
Availability: InStock

Brand Name:	OEM
Model Number:	EAJ.1B.306
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-10 working days
Payment Terms:	Western Union, MoneyGram, T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Size:

Gender:

6pin Male Socket

Insulator:

P:PPS

Series::

Lemo EAJ

Housing Material:

Brass Chrome Plated

Contact Type:

Solder

Packaging Details:

PP bag

Supply Ability:

50000pcs per month

Highlight:

10 pin lemo connector

9 pin circular connector

Product Description

Lemo compatible B series connectors EAJ 6pin RED EPIC power socket EAJ.1B.306

Features:

EAJ 6pin RED EPIC power socket EAJ.1B.306
Lemo model number: EAJ.1B.306
Push pull self-locking, very security systems and easy for mating and unmating
Solder type, can do cable assembly
Application: Red Epic power supply socket
Warranty time: 1 year

DIY cable assembly process:

Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
Screw the collet nut tightly
Hitch the sleeve to the corresponding step of collet nut.

Compatible Lemo B Series Connectors EAJ 6 Pin RED EPIC Power Socket EAJ.1B.306 0

Keying:

We can supply different key connector, please see details as followings:

Compatible Lemo B Series Connectors EAJ 6 Pin RED EPIC Power Socket EAJ.1B.306 1

Compatible Lemo B Series Connectors EAJ 6 Pin RED EPIC Power Socket EAJ.1B.306 2
