PCB board socket Lemo K Series 1K 8pin panel mount connectors EEG.1K.308.CLV

Name: PCB board socket Lemo K Series 1K 8pin panel mount connectors EEG.1K.308.CLV
Brand: Ebuddy Technology Co.,Limited
SKU: EEG.1K.308.CLV
Price: 0.50 USD
Availability: InStock

Brand Name:	OEM
Model Number:	EEG.1K.308.CLV
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Size:

Type:

Elbow Socket

Color:

Silver

Contact Material:

Brass

Keying:

1key

Application:

PCB Board Install

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

lemo circular connectors

lemo fiber optic connectors

Product Description

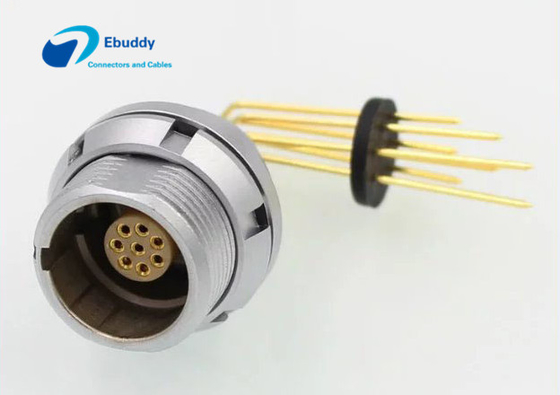

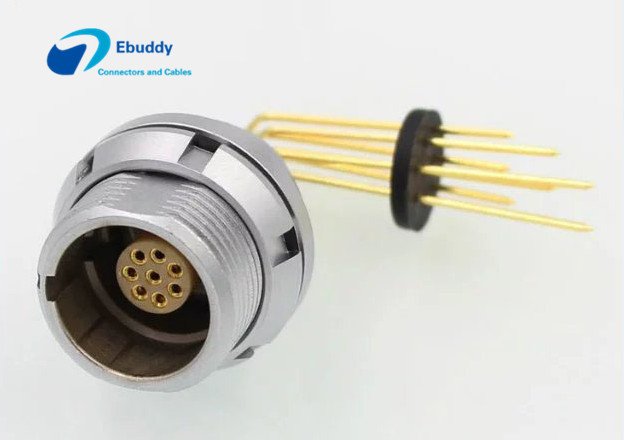

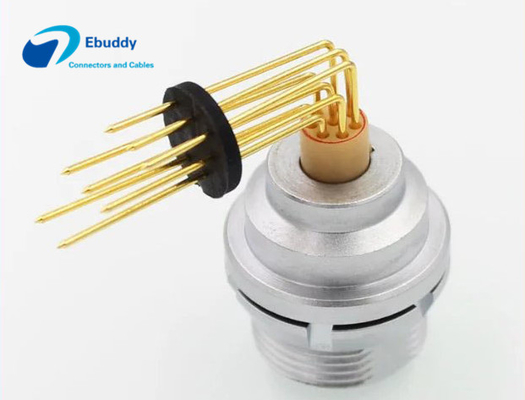

Lemo K series PCB board socket EEG right angle 1K 8pin panel mount connectors EEG.1K.308.CLV

Specifications:

Shell Style/Model :EE*: Fixed receptacle, nut fixing, with elbow contacts for printed circuit (back panel mounting)
Keying:1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration :1K.308 : 8 Low Voltage
Contact Type: Print (elbow)
Max. Matings: 5000
Contact Dia.: 0.7 mm (0.028in)
R (max): 6.1 mOhm
Vtest (contact-shell): 1150 V (AC), 1630 V (DC)
Vtest (contact-contact): 950 V (AC), 1340 V (DC)

Technical Parameter:

Endurance (Shell): 5000 mating cycles
Temp (min / max): -55°C / +200°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21 Shielding (min): 95 dB (10 MHz)
Shielding (min): 80 dB (1 GHz)
IP Rating: 68

Size and drawing:

PCB board socket Lemo K Series 1K 8pin panel mount connectors EEG.1K.308.CLV 0

PCB board socket Lemo K Series 1K 8pin panel mount connectors EEG.1K.308.CLV 1
