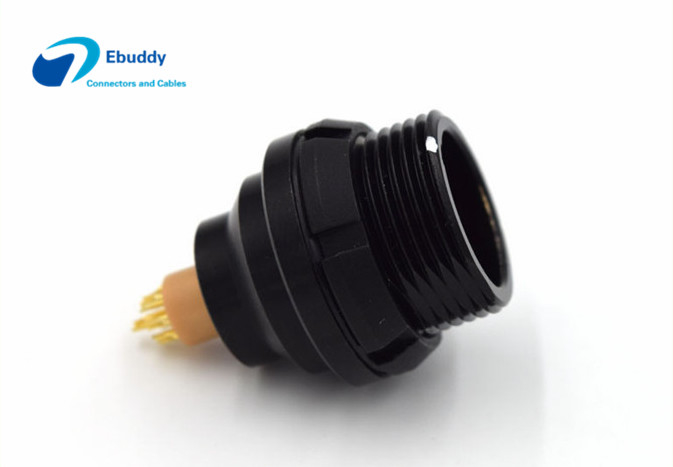

Black color Lemo EGG rear panle mounted female socket EGG 1K 4pin receptacle EEG.1K.304.CLL

Black color Lemo EGG rear panle mounted female socket EGG 1K 4pin receptacle EEG.1K.304.CLL

Black color Lemo EGG rear panle mounted female socket EGG 1K 4pin receptacle EEG.1K.304.CLL
Black color Lemo EGG rear panle mounted female socket EGG 1K 4pin receptacle EEG.1K.304.CLL
Black color Lemo EGG rear panle mounted female socket EGG 1K 4pin receptacle EEG.1K.304.CLL
Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE.ROHS
Model Number: EEG.1K.304.CLL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: pp pag
Payment Terms: Western Union, T/T，Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Size: 1K Series: EEG
Color: Black Contact Material: Brass
Warranty: 1 Year Style: Rear Panel Mounted
High Light:

lemo circular connectors

,

lemo fiber optic connectors



Black color Lemo EGG rear panle mounted female socket EGG 1K 4pin receptacle EEG.1K.304.CLL



Specifications:



  • Black color Lemo EGG rear panle mounted female socket
  • EGG 1K 4pin receptacle EEG.1K.304.CLL
  • Black corlor chromed, silver or other color also available
  • Size: 0K, 1k, 2k
  • Pins: 2-32pins
  • Application: Camera, medical, Instrumentation, Industry,Energy
  • 100% compatible with Lemo/ fischer/ Hirose, or we will refund



Technical Parameter:



  • Endurance (Shell): 5000 mating cycles
  • Temp (min / max): -55°C / +200°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Salt Spray Corrosion: >1000 hr
  • Climatical Category: 50/175/21 Shielding (min): 95 dB (10 MHz)
  • Shielding (min): 80 dB (1 GHz)
  • IP Rating: 68



Size and drawing:



Black color Lemo EGG rear panle mounted female socket EGG 1K 4pin receptacle EEG.1K.304.CLL 0





Black color Lemo EGG rear panle mounted female socket EGG 1K 4pin receptacle EEG.1K.304.CLL 1



Black color Lemo EGG rear panle mounted female socket EGG 1K 4pin receptacle EEG.1K.304.CLL 2
