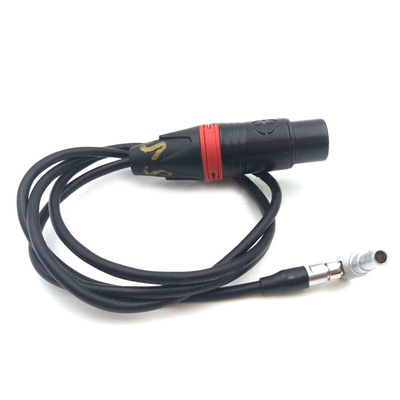

Lemo Right Angle 00B Camera Connection Cable 5 Pin To Female XLR 3 Pin Cable

1pc
MOQ
Negotiable
Price
Lemo Right Angle 00B Camera Connection Cable 5 Pin To Female XLR 3 Pin Cable
Features Gallery Product Description Request A Quote
Features
Specifications
ConnectorA: FGG 00B Elbow 5 Pin
ConnectorB: XLR Female
Cable Length: Customized
Contact Type: Male To Female
Application: Arri Alexa Mini Audio Cable
Cable OD: 4MM
High Light:

red camera cable

,

arri alexa audio cable

Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE,ROHS
Model Number: Lemo 5pin to XLR
Payment & Shipping Terms
Packaging Details: PP bag
Delivery Time: 3-7 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 90000pcs per month
Product Description



Arri alexa mini audio cable Lemo right angle 00B 5pin to female XLR 3pin cable



Description:



  • Arri alexa mini audio cable
  • Lemo right angle 00B 5pin to female XLR pin cable
  • Connector A: FHG 00B 5 pin(FHG.00B.305.CLAD), Connector B: XLR 3pin female
  • Cable Length: 1m(We can customize)
  • Fast delivery time: 3-5working days for usual models
  • Application: Arri alexa mini audio cable
  • Good quality with best competitive price, can help you save at least 50% cost
  • Warranty time: 1 year, any problems in warranty time, we will fix it for free or replace new one for you, shipping cost paid by us
  • 100% compatible with Lemo/ fischer/ Hirose, or we will refund



DIY cable assembly process​:



Lemo Right Angle 00B Camera Connection Cable 5 Pin To Female XLR 3 Pin Cable 0

  1. Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
  2. Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
  3. put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
  4. pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
  5. Screw the collet nut tightly
  6. Hitch the sleeve to the corresponding step of collet nut.





Pin-out:



Lemo Right Angle 00B Camera Connection Cable 5 Pin To Female XLR 3 Pin Cable 1



Lemo Right Angle 00B Camera Connection Cable 5 Pin To Female XLR 3 Pin Cable 2
