50 IP Rating Lemo B Series Connectors ECG 2-32 Pin Female Socket With PCB / Solder Pin

name

50 IP Rating Lemo B Series Connectors ECG 2-32 Pin Female Socket With PCB / Solder Pin

Brand Name:	Ebuddy
Model Number:	Lemo ECG
MOQ:	1
Price:	Negotiable
Delivery Time:	5-8workingdays
Payment Terms:	T/T, Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Contact Type:

PCB Or Solder

Max. Matings:

5000

Shell Style/Model:

Female Socket

Vtest (contact-shell):

700 V (AC), 990 V (DC)

Vtest (contact-contact):

800 V (AC), 1130 V (DC)

IP Rating:

50

Packaging Details:

PP bag

Supply Ability:

10000pcs per month

Highlight:

10 pin lemo connector

,

9 pin circular connector

Product Description

50 IP Rating Lemo B Series Connectors ECG 2-32 Pin Female Socket

Lemo compatible B series connector ECG 2-32pin female socket with PCB pin and solder pin, designed for reliable industrial applications.

Product Features

ECG 2-32pin female socket with PCB pin and solder pin options
Available sizes: 00B, 0B, 1B, 2B, 3B
Pin configurations: 2-32 pin
Keying: 1 key (alpha=0)
Termination type: Female PCB or solder
Fully compatible with Lemo ECG specifications
High quality construction with 5000 mating cycles endurance
Customization options available upon request

Contact Configurations

Available contact configurations by connector size:

00B sizes: 2, 3 and 4 contacts
0B sizes: 2, 3, 4, 5, 6, 7 and 9 contacts
1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 and 14 contacts
2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32 contacts

PCB Board Drilling Specifications

For custom machine mold applications, confirm hole size according to your PCB requirements before selecting connector style. Our connectors range from 00 to 03 sizes to accommodate various board dimensions. For example, if your board panel cut-outs OD is approximately 8-9mm, select 0B size connectors.

Insulating Washer Options

Insulating washers maintain potential between different conductors when plugs and sockets are mounted on boards.

Color Options

Available in multiple colors: Blue, White, Gray, Yellow, Brown, Black, Red, Orange, Green

Size Options

Sizes: 00, 0, 01, 02 for connector maximum OD = 10mm-21mm. Please specify your connector size for appropriate washer recommendation.

Product Images

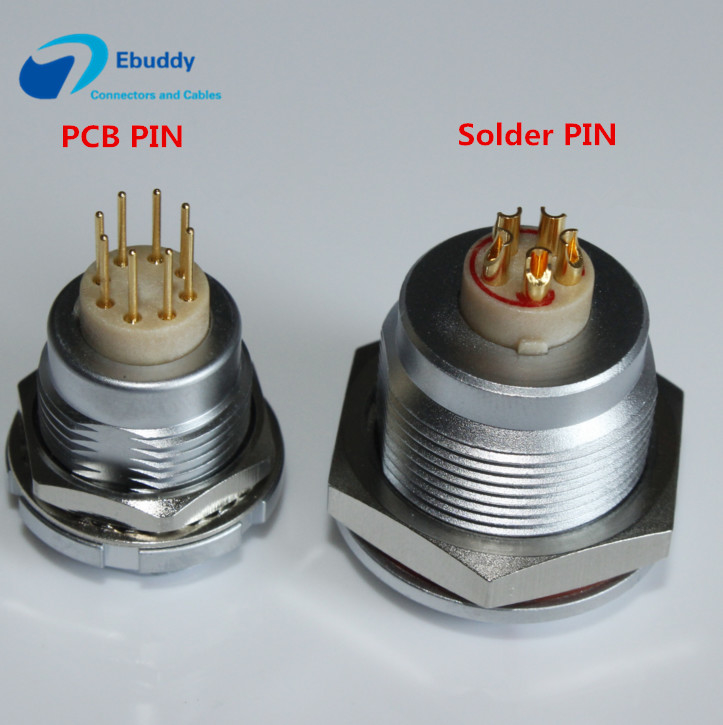

50 IP Rating Lemo B Series Connectors ECG 2-32 Pin Female Socket With PCB / Solder Pin 0

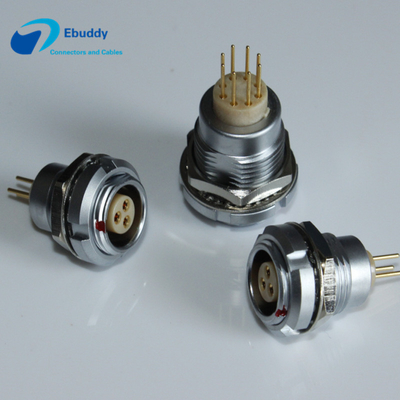

50 IP Rating Lemo B Series Connectors ECG 2-32 Pin Female Socket With PCB / Solder Pin 1

50 IP Rating Lemo B Series Connectors ECG 2-32 Pin Female Socket With PCB / Solder Pin 2

Customization Services

We welcome customized requirements. Please provide detailed drawings and specifications for custom connector solutions.
