Print Contact PCB Mount Circular Connector

Name: Print Contact PCB Mount Circular Connector
Brand: Ebuddy Technology Co.,Limited
SKU: EPG.0B.304
Price: 23.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	EPG.0B.304
MOQ:	1
Price:	Negotiable
Delivery Time:	5-8workingdays
Payment Terms:	T/T,Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Contact Type:

Print (Elbow)

Max. Matings:

5000

Shell Style/Model:

Elbow Receptacle

Vtest (contact-shell):

700 V (AC), 990 V (DC)

Vtest (contact-contact):

800 V (AC), 1130 V (DC)

IP Rating:

Packaging Details:

PP bag

Supply Ability:

10000pcs per month

Highlight:

pcb mount circular connector

circular pcb connector

Print Contact PCB Mount Circular Connector

Product Description

Print Contact PCB Mount Circular Connector

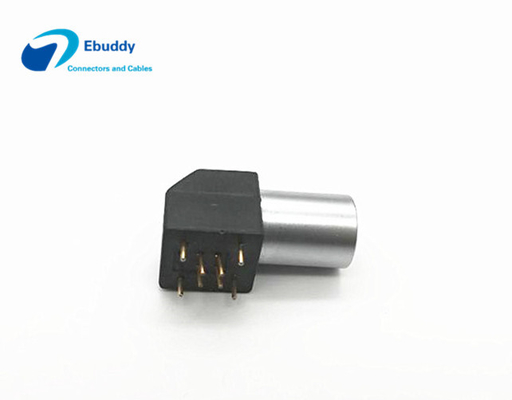

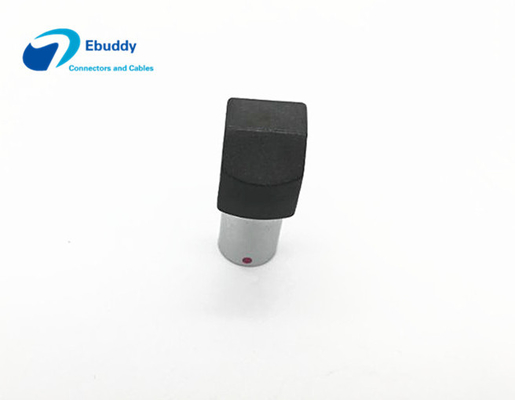

Printed Circuit Board connector Lemo EPG PCB right angle solder socket with complete compatibility and high durability.

Main Features

Printed Circuit Board connector Lemo EPG PCB right angle solder socket
Keying: 1 key (alpha=0)
Pins: 2/3/4/5/6/7/8/9/10/12/14/16
Size: 0B 1B 2B
Termination type: Female print PCB
Fully compatible with Lemo EPG, excellent quality with 5000 mating cycles endurance
Customization available - provide detailed drawings for custom requirements

Contact Configuration by Size

Connector Size	Available Contact Counts
00B	2, 3, 4
0B	2, 3, 4, 5, 6, 7, 9
1B	2, 3, 4, 5, 6, 7, 8, 10, 14
2B	2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19, 32

PCB Board Drilling Guidelines

For machine mold applications, confirm hole size according to your board specifications before selecting connector style. Our connectors range from 00 to 03 sizes to accommodate various board dimensions. For example, if your board panel cut-outs OD is approximately 8-9mm, select 0B size connector.

Insulating Washer (Color Wheel)

Application: Install insulating washers when plug and socket assemblies need to be attached to the board to maintain potential between different conductors.

Color Options: Blue, White, Gray, Yellow, Brown, Black, Red, Orange, Green
Size Options: 00/0/01/02, suitable for connector maximum OD = 10mm-21mm

When selecting washers, please specify your connector size for appropriate size recommendation.
