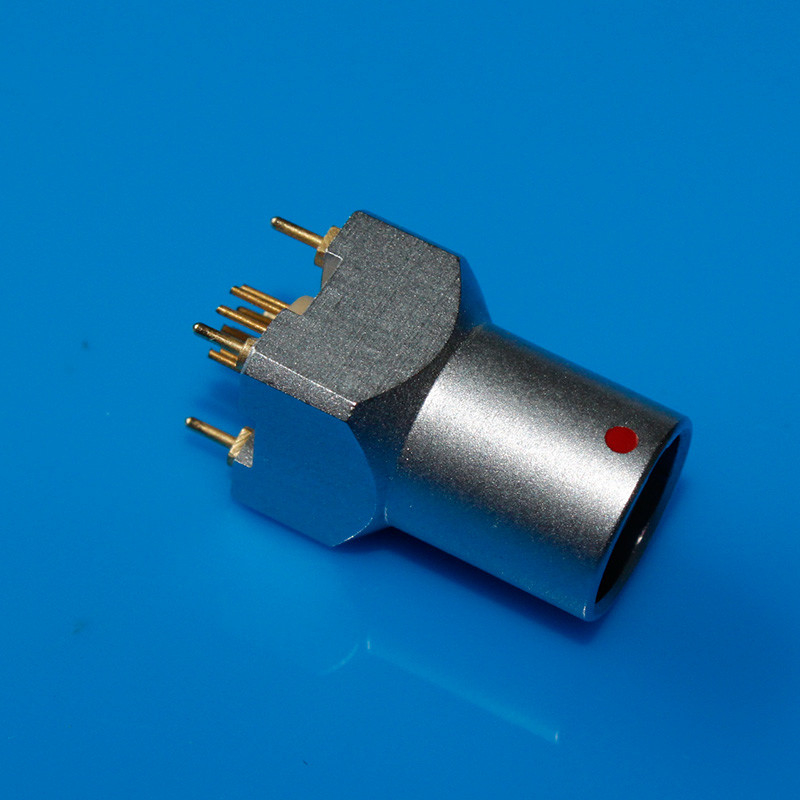

EZG Printed Circuit Board Connector Female Print PCB Socket Connector

1
MOQ
Negotiable
Price
EZG Printed Circuit Board Connector Female Print PCB Socket Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Matching Parts: FGG.0B.302.CLAD21
Configuration: 0B.302 : 2 Low Voltage
Shock Resistance: 100 G [ 6 Ms]
Shell Style/Model: Straight Receptacle For Printed Circuit
Termination Type: Female Print PCB
Application: PCB Mounting
High Light:

pcb mount circular connector

,

circular pcb connector

Basic Infomation
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: DZG.0B.302.CLAD
Payment & Shipping Terms
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Product Description



EZG printed circuit board connector 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin 10pin 12pin 16pin female print PCB socket



Description:



  • Compatible with LEMO and ODU

  • Suitable for printed circuit
  • Housing Material:Brass (chrome plated) shell

  • OEM available

  • ISO Rohs certificate





PCB Board drilling figure:



           If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.


FAQ:



  • Medical
  • Defense Security
  • Instrumentation
  • Transportation
  • Industry
  • Energy
  • Broadcast
  • Audio/video



Insulating washer(color wheel):



  • Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.
  • Color options:

EZG Printed Circuit Board Connector Female Print PCB Socket Connector 0



Size and drawing:



EZG Printed Circuit Board Connector Female Print PCB Socket Connector 1

EZG Printed Circuit Board Connector Female Print PCB Socket Connector 2
