2B 12pin IP50 Male And Female Connectors EGG.2B.312

Name: 2B 12pin IP50 Male And Female Connectors EGG.2B.312
Brand: Ebuddy Technology Co.,Limited
SKU: FGG.2B.312.CLAD
Price: 4.50 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FGG.2B.312.CLAD
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Insulator:

PPS

Series:

Male And Female

Size:

Lemo 2B

Shock Resistance:

100g.6ms

Max. Matings: 5000:

5000

IP Rating:

IP50

Resiatance To Vibration:

10-20000Hz, 15g

Warranty Time:

1 Year

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

IP50 Male And Female Connectors

Male And Female Connectors EGG.2B.312

2B 12pin Waterproof Circular Connector

Product Description

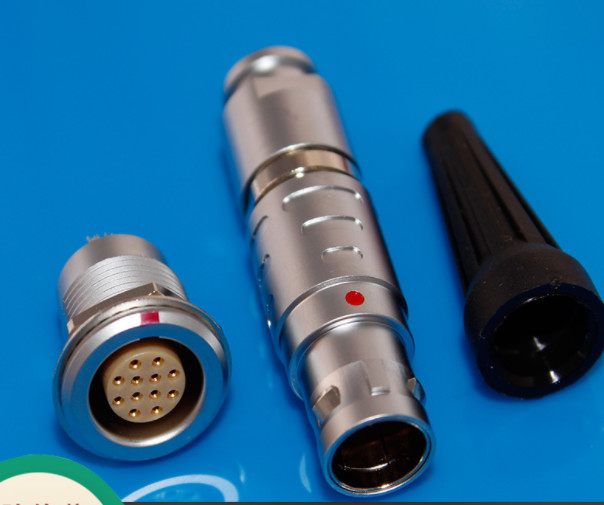

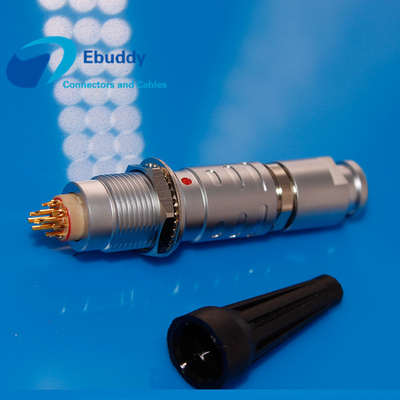

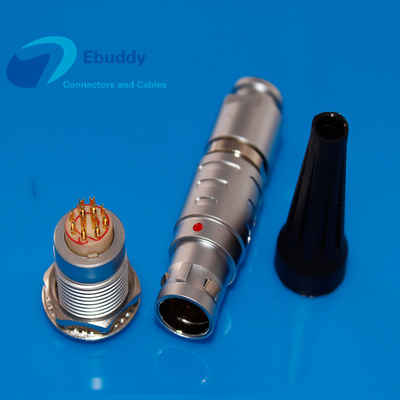

2B 12pin IP50 Male and Female Connectors EGG.2B.312

Premium Lemo-compatible 2B 12pin male and female connectors FGG.2B.312/EGG.2B.312 designed for industrial applications.

Product Features

12-pin circular cable connector fully compatible with Lemo standards
High-quality construction for easy locking and mating
Available in multiple pin configurations: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, and 19 pins
Soldering type and PCB printed circuit board options available
Type options: male plug, female plug, female socket, male socket
Cable collet diameter range: 2.6mm to 7.0mm
Custom cable and connector solutions available upon specification

Cable Collet Size Options

Collet No.	Type	Coding	Max OD (mm)	Min OD (mm)
2B	M	42	4.0	3.1
2B	D	52	5.0	4.1
2B	D	62	6.0	5.1
2B	D	72	7.0	6.1
2B	D	82	8.0	7.1
2B	D	92	9.0	8.1
2B	D	99	9.7	9.1

Colorful Sleeve Specifications

Material: Polyurethane (PU)
Temperature range: -40°C to +80°C
Available colors: Black, Red, Blue, White, Yellow, Green
Sizes: 00B/0B/1B/2B, 0K/1K/2K
Cable OD range: 3.1mm to 8.2mm

Why Choose Ebuddy Connectors

Fully compatible with Lemo, ODU, and Fischer connectors at lower cost
Certified to ROHS, ISO9001:2008, and UL standards
Short delivery time: 7-10 days typically
Factory production capacity: 5,000 sets per week
Samples available for quality verification
