Lemo B Series Connectors
Created with Pixso. M7 PCB Female Socket Lemo 00B ECG Right Angle Pins For Printed Circuit Board
name
  • name
  • name
  • name
  • name
  • name

M7 PCB Female Socket Lemo 00B ECG Right Angle Pins For Printed Circuit Board

Brand Name: OEM
Model Number: ECG.00.305.CLV
MOQ: 1pc
Price: Negotiable
Delivery Time: 3-7 working days
Payment Terms: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS
Model:
ECG.00.305.CLV
Pin:
Printed Circuit
Shell Size:
Lemo 00
Style:
Fixed Socket
Contact:
Female
Max. Matings:
5000
Packaging Details:
PP bag
Supply Ability:
90000pcs per month
Highlight:

M7 PCB Female Socket

,

Lemo 00B PCB Female Socket

,

Lemo 00B ECG Right Angle Pins

Product Description
M7 PCB Female Socket Lemo 00B ECG Right Angle Pins
High-quality PCB female socket with right angle pins designed for printed circuit board applications. Model: ECG.00.305.CLV
Product Features
  • Lemo 00B 5-pin ECG female socket with elbow pins
  • Available in multiple sizes: 00B, 0B, 1B, 2B, 3B, 4B
  • Shell endurance: 5000 mating cycles
  • Maximum humidity: ≤95% at 60°C / 140°F
  • IP Rating: 50
  • Configuration: Brass (gold plated)
  • Housing material: Brass chrome plated
  • Temperature range: -20°C to +150°C
Technical Specifications
Parameter Specification
Connector Type Lemo 00B 5-pin ECG Female Socket
Pin Configuration Right Angle (Elbow) Pins
Available Sizes 00B, 0B, 1B, 2B, 3B, 4B
Mating Cycles 5000
IP Rating 50
Temperature Range -20°C to +150°C
Max Humidity ≤95% at 60°C / 140°F
Contact Material Brass (gold plated)
Housing Material Brass chrome plated
Size Drawing
M7 PCB Female Socket Lemo 00B ECG Right Angle Pins For Printed Circuit Board 0
Custom Services
We offer comprehensive custom solutions to meet your specific connector and cable requirements:
  • Common Model Connectors Stock: Ready-to-ship common models with 3-day delivery
  • Cable Assembly Service: Custom cable assembly according to your specifications
  • Technical Support: Professional assistance for connector and cable applications
  • Cable Assembly Solutions: Customized solutions tailored to your needs
  • Customized Connector Service: New mold development for unique requirements
Fast Delivery
Most models available from stock. Sample delivery: 2-3 days. Mass production: 5-7 days.
Payment Methods
T/T, PayPal, Western Union, Credit Card. PayPal recommended for small quantities.
Product Views

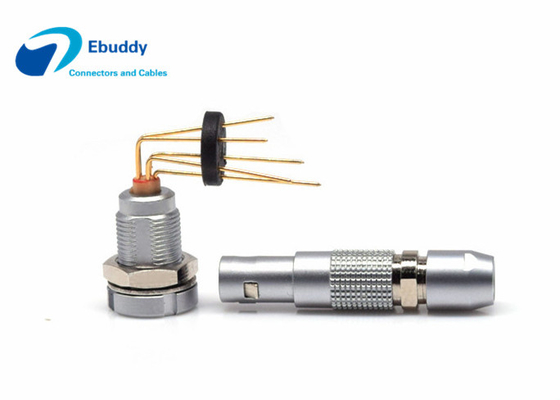

M7 PCB Female Socket Lemo 00B ECG Right Angle Pins For Printed Circuit Board 1

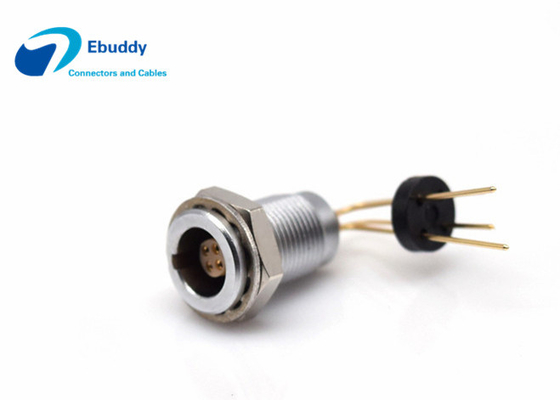

M7 PCB Female Socket Lemo 00B ECG Right Angle Pins For Printed Circuit Board 2

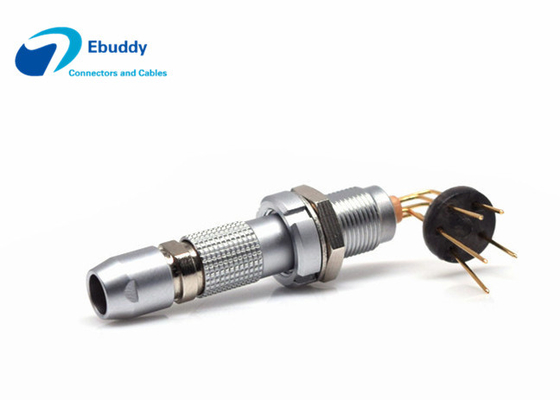

M7 PCB Female Socket Lemo 00B ECG Right Angle Pins For Printed Circuit Board 3

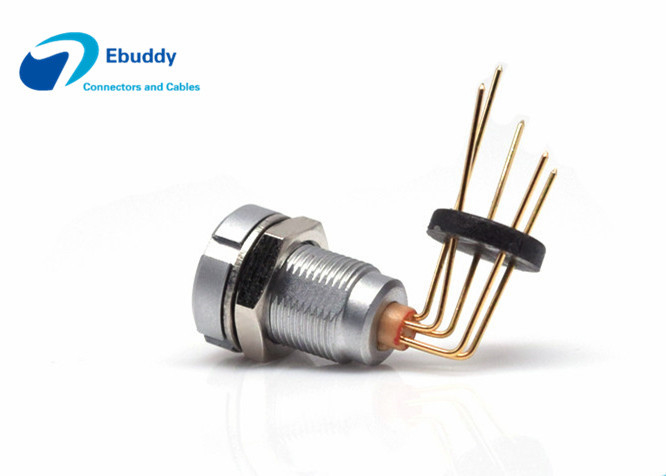

M7 PCB Female Socket Lemo 00B ECG Right Angle Pins For Printed Circuit Board 4
M7 PCB Female Socket Lemo 00B ECG Right Angle Pins For Printed Circuit Board 5
M7 PCB Female Socket Lemo 00B ECG Right Angle Pins For Printed Circuit Board 6
M7 PCB Female Socket Lemo 00B ECG Right Angle Pins For Printed Circuit Board 7
M7 PCB Female Socket Lemo 00B ECG Right Angle Pins For Printed Circuit Board 8
M7 PCB Female Socket Lemo 00B ECG Right Angle Pins For Printed Circuit Board 9
