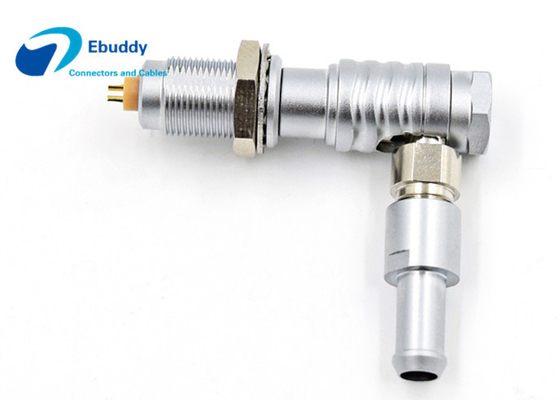

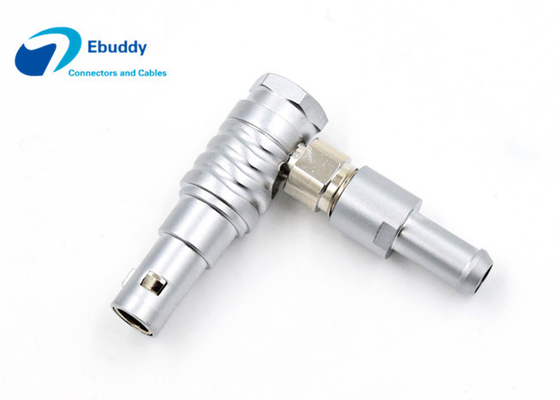

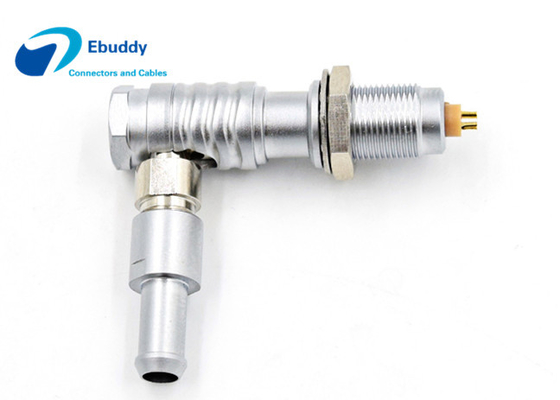

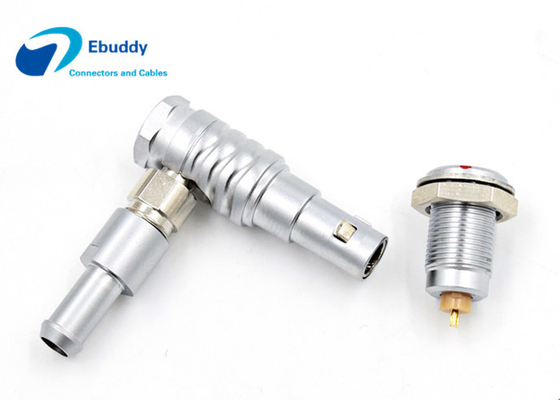

Lemo Elbow Plug 00B Size 2pin 3pin 4pin 5pin Female Connectors FHG 00 302

Name: Lemo Elbow Plug 00B Size 2pin 3pin 4pin 5pin Female Connectors FHG 00 302
Brand: Ebuddy Technology Co.,Limited
SKU: FHG.00.304
Price: 22.30 USD
Availability: InStock

Brand Name:	OEM
Model Number:	FHG.00.304
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-7 working days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Model:

FHG.00.302

Pin:

Solder

Shell Size:

Lemo 00

Style:

Elbow Plug

Contact:

Male

Max. Matings:

5000

Packaging Details:

PP bag

Supply Ability:

90000pcs per month

Highlight:

Lemo Elbow Plug 5Pin Female Connectors

00B Size 5Pin Female Connectors

FHG Lemo B Series Connectors

Product Description

Lemo Elbow Plug 00B Size 2pin 3pin 4pin 5pin Female Connectors FHG 00 302

High-performance Lemo elbow plug connectors in 00B size, available in 2-pin, 3-pin, 4-pin, and 5-pin female configurations.

Performance Specifications

Insert	00B.302 : 2 Low Voltage
Configuration	Brass (gold plated)
Insulator	P:PPS
Specifications	Low Voltage
Contact Type	Solder
Max. Matings	5000
Contact Dia	0.5 mm
Bucket Dia	0.4 mm
Max. Solid Conductor	0.09 mm² (AWG 28)
Max. Stranded Conductor	0.05 mm² (AWG 30)
R (max)	8.7 mOhm
Vtest (AC)	1100 V
Rated Current	5 A

Environmental Characteristics

Endurance (Shell)	5000 mating cycles
Temperature Range	-20°C to +150°C
Max Humidity	≤95% at 60°C / 140°F
IP Rating	50

Size Drawing

Custom Services

Common Model Connectors Stock: We maintain inventory for common models with shipping within 3 days of order placement.
Cable Assembly Service: Custom cable assembly solutions tailored to your specific requirements.
Technical Support: Professional technical assistance for connector and cable application challenges.
Cable Assembly Solutions: Comprehensive cable assembly service solutions designed to meet your needs.
Customized Connector Service: New mold development for connectors that don't match our existing product range.

Delivery & Payment

Fast Delivery: Most models available from stock with sample delivery in 2-3 days and mass production in 5-7 days.

Payment Methods: T/T, PayPal, Western Union, and Credit Card. PayPal recommended for small quantity orders.

Collet Size Reference
