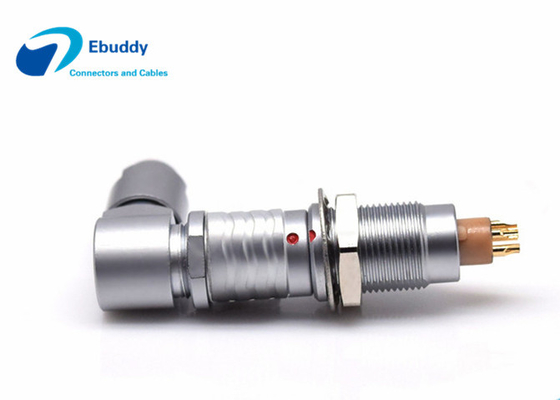

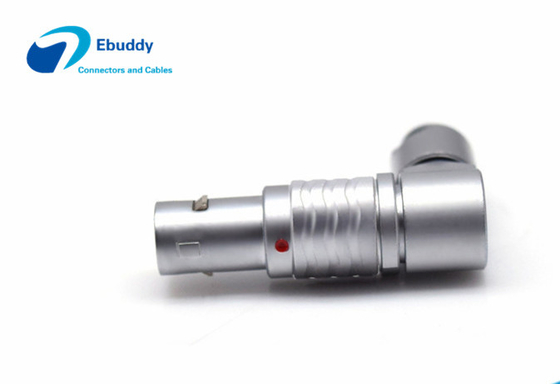

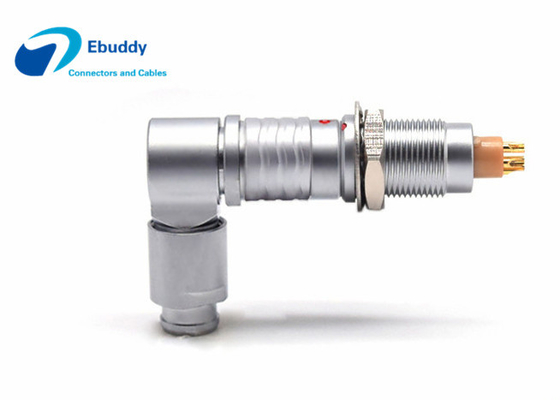

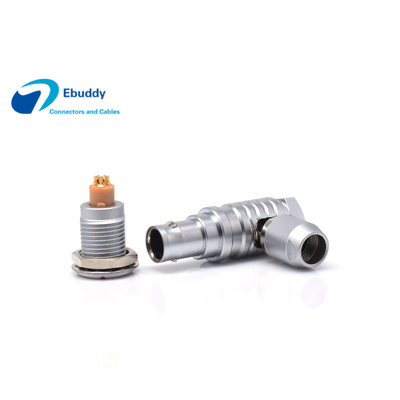

Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305

name

Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305

Brand Name:	OEM
Model Number:	FSG.0B.305
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-7 working days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Model:

FSG.0B.305

Pin:

2pin,3pin.4pin,5pin,pin,7pin

Shell Size:

Lemo 0B

Style:

Adjustable Angle

Contact:

Male Plug

Max. Matings:

5000

Packaging Details:

PP bag

Supply Ability:

90000pcs per month

Highlight:

Adjustable Angle Lemo B Series Connectors

,

5pin Lemo B Series Connectors

,

Elbow Plug FSG.0B.305

Product Description

Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305

Lemo adjustable angle connectors B series FSG 0B 5pin elbow plug FSG.0B.305

Key Features

Lemo adjustable angle 5pin connectors
0B, 1B, 2B, 2-16pin configurations available

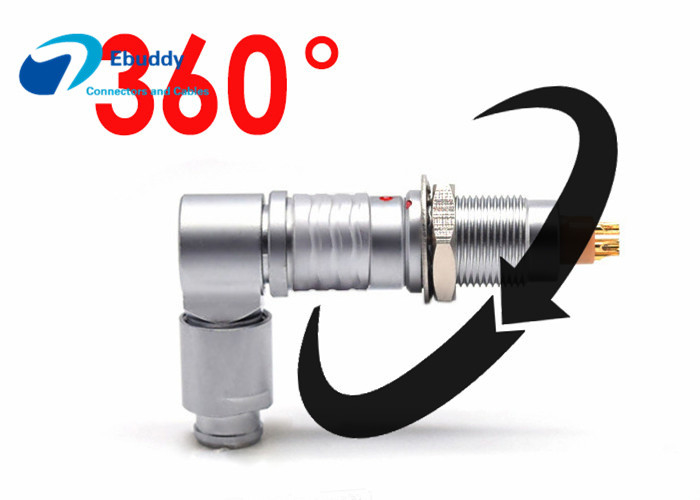

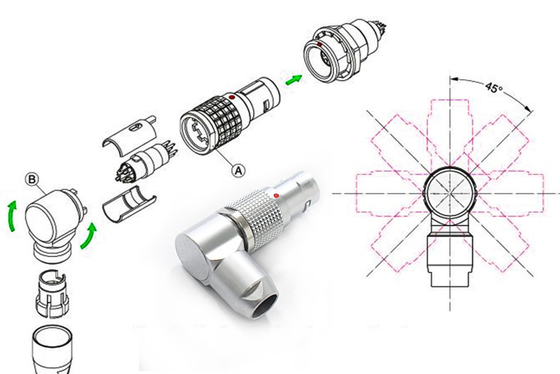

360-degree adjustable design for flexible positioning
Shell endurance: 5000 mating cycles
Maximum humidity: ≤95% at 60°C / 140°F
IP Rating: 50
Configuration: Brass (gold plated)
Housing Material: Brass chrome plated
Temperature range: -20°C to +150°C

Technical Specifications

Part Number	EB-FSG.0B.305.CLAD
Size/Series	FS*: Adjustable right angle Anglissimo plug with cable collet and nut for fitting a bend relief
MECHANICAL DETAILS
Shell Style/Model	Elbow plug with cable collet
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
PERFORMANCE DETAILS
Insert	0B.305: 5 Low Voltage
Configuration	Brass (gold plated)
Insulator	P: PPS
Specifications	Low Voltage
Contact Type	Solder
Contact Dia	0.5 mm
Bucket Dia	0.45 mm
Max. Solid Conductor	0.09 mm² (AWG 28)
Max. Stranded Conductor	0.09 mm² (AWG 28)
R (max)	8.7 mOhm
Vtest (AC)	900 V
Rated Current	2.5A
OTHER CHARACTERISTICS
Endurance (Shell)	5000 mating cycles
Temp (min)	-20°C
Temp (max)	+150°C
Humidity (max)	≤95% at 60°C / 140°F
IP Rating	50

Applications

Medical Electronics
Test and Laboratory Equipment
Measurement Instrumentation
Data and Telecom Systems
Audio and Video Applications
Military and Aerospace
Industrial Controls
Nuclear Technology

Custom Services

Common model connectors stock: Standard models available for quick shipping within 3 days
Cable assembly service: Custom cable assembly according to your requirements
Technical support: Professional assistance for connector and cable operation issues
Cable assembly solution supply: Custom solutions to meet specific application needs
Customized connector service: New mold development for specialized connector requirements

Colorful Sleeve (Jacket) Options

Material: Polyurethane (PU)
Temperature range: -40°C to +80°C
Colors: Black, Red, Blue, White, Yellow, Green
Sizes: 00B/0B/1B/2B, 0K/1K/2K
Cable OD Range: 3.1mm - 8.2mm

Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305 0
