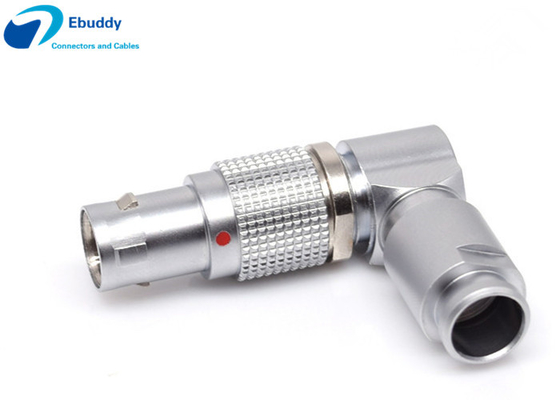

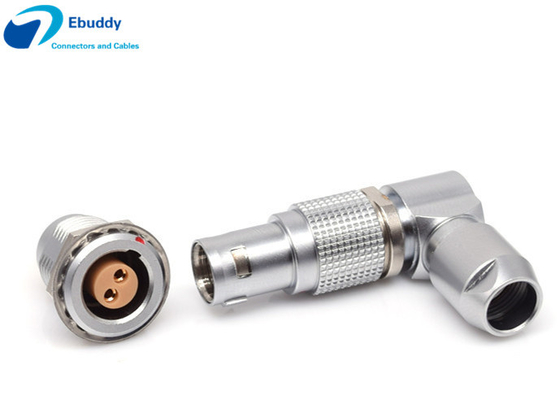

Right Angle Lemo Cable Connector 360 Adjustable Degree Male Plug FSG.1B.302

Right Angle Lemo Cable Connector 360 Adjustable Degree Male Plug FSG.1B.302

  • Right Angle Lemo Cable Connector 360 Adjustable Degree Male Plug FSG.1B.302
  • Right Angle Lemo Cable Connector 360 Adjustable Degree Male Plug FSG.1B.302
  • Right Angle Lemo Cable Connector 360 Adjustable Degree Male Plug FSG.1B.302
  • Right Angle Lemo Cable Connector 360 Adjustable Degree Male Plug FSG.1B.302
Right Angle Lemo Cable Connector 360 Adjustable Degree Male Plug FSG.1B.302
Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE,ROHS
Model Number: FSG.1B.302
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: PP bag
Delivery Time: 3-7 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 90000pcs per month
Contact Now
Detailed Product Description
Model: FSG.1B.302 Pin: 2-19pin
Shell Size: Right Angle 1B Style: Elbow Receptacle
Contact: Male Plug Max. Matings: 5000
High Light:

Right Angle Lemo Cable Connector

,

360 Adjustable Degree Lemo Cable Connector

,

Male Plug FSG.1B.302

Lemo cable connector FHG right angle 360 adjustable degree male plug FSG.1B.302



Features:



  • Lemo FHG right angle 360 adjustable degree male plug FSG.1B.302
  • 0B,1B,2B available here
  • Endurance (Shell):5000 mating cycles
  • Humidity (max):<=95% [at 60 deg C / 140 F]
  • IP Rating:50
  • Configuration:Brass (gold plated)
  • Housing Material:Brass chrome plated

  • Temp (min):-20 deg C
  • Temp (max):+150 deg C
Drawing and size:



Shell Style/Model FS*: Adjustable right angle Anglissimo plug (8 selective positions) with cable collet and nut for fitting a bend relief
Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
PERFORMANCE DETAILS
Insert 1B.302 : 2 Low Voltage
Configuration Brass (gold plated)
Insulator P:PPS
Specifications Low Voltage
Contact Type Solder
Max. Matings 5000
Contact Dia 1.3 mm
Bucket Dia 1 mm
Max. Solid Conductor 0.5 mm^2 (AWG 20)
Max. Stranded Conductor 0.5 mm^2 (AWG 20)
R (max) 3.6 mOhm
Vtest (AC) 1500 V
Rated Current 15 A




Important Applications:

  • Medical Electronics
  • Test and Laboratary
  • Measurement Instrumentation
  • Data and Telecom Systems
  • Audio and video Applications
  • Military and Aerospace
  • Industrial Controls
  • Nuclear Technology



Custom service:



  • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
  • Cable assembly service: we can supply cable assembly service according to your requirements.
  • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
  • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
  • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.



Corlorful Sleeve (Jacket):



Specification:

  • Material: Polyurethane material(PU)
  • Temperature range: -40°--- +80°
  • Color: Black, Red, Blue, White, Yellow, Green
  • Size: 00B/0B/1B/2B, 0K/1K/2K
  • Cable OD Range: 3.1mm—8.2mm
