Female 14pin Circular Lemo Free Socket For Cable Mount

Name: Female 14pin Circular Lemo Free Socket For Cable Mount
Brand: Ebuddy Technology Co.,Limited
SKU: PHG.1B.314
Price: 0.50 USD
Availability: InStock

Brand Name:	OEM
Model Number:	PHG.1B.314
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-7 working days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Model:

PHG.1B.314

Pin:

2-32pin

Shell Size:

Style:

Free Socket

Contact:

Female Plug

Max. Matings:

5000

Packaging Details:

PP bag

Supply Ability:

90000pcs per month

Highlight:

Circular Lemo Free Socket

14pin Lemo Free Socket

14pin Circular Lemo Cable Connector

Product Description

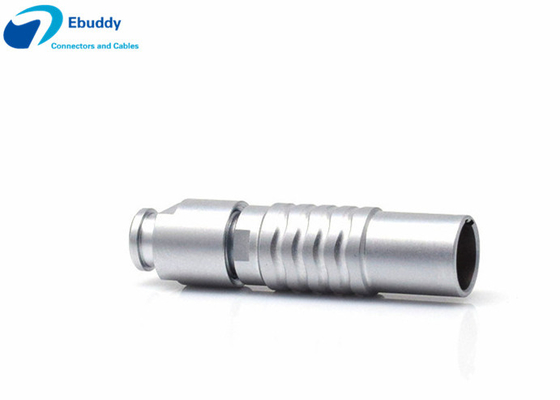

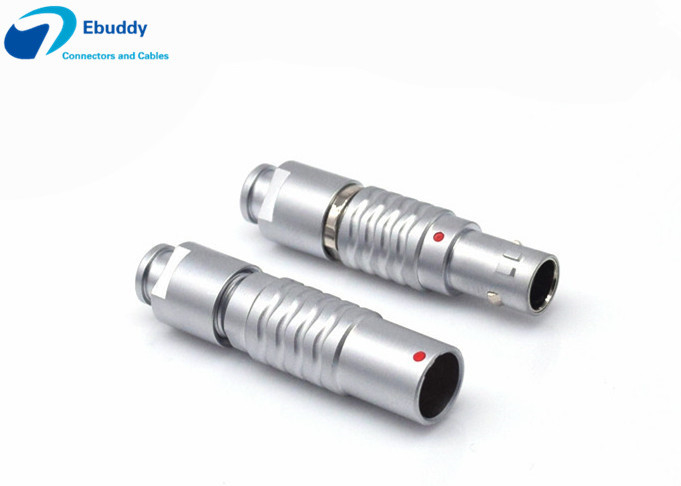

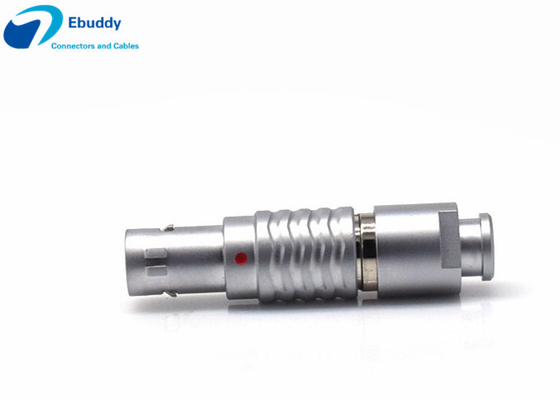

Female 14-Pin Circular LEMO Free Socket for Cable Mount

LEMO free socket 14-pin PHG female plug for cable mount with 0B, 1B, 2B, 3B, 4B configurations and 2-32 pin circular connector options.

Key Features

Available in 0B, 1B, and 2B configurations
Endurance (Shell): 5000 mating cycles
Maximum humidity: ≤95% at 60°C / 140°F
IP Rating: 50
Configuration: Brass (gold plated)
Housing Material: Brass chrome plated
Temperature range: -20°C to +150°C

Technical Specifications & Dimensions

Shell Style/Model	PH*: Free receptacle, cable collet and nut for fitting a bend relief
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Insert	1B.314 : 14 Low Voltage
Configuration	Brass (gold plated)
Insulator	P:PPS
Specifications	Low Voltage
Contact Type	Solder
Max. Matings	5000
Contact Dia	0.5 mm (0.02in)
Bucket Dia	0.45 mm (0.018in)
Max. Solid Conductor	0.09 mm² (AWG 28)
Max. Stranded Conductor	0.09 mm² (AWG 28)
R (max)	8.7 mOhm
Vtest (AC)	1200 V
Rated Current	2 A

Size Drawing

Custom Services

Common model connectors stock: We stock materials for common models and can ship within 3 days
Cable assembly service: Custom cable assembly according to your requirements
Technical support: Professional assistance for connector and cable operation issues
Cable assembly solutions: Custom solutions tailored to your specific needs
Customized connector service: New mold development for specialized requirements

Colorful Sleeve (Jacket) Options

Available in multiple colors and sizes with polyurethane material construction.

Sleeve Specifications

Material: Polyurethane (PU)
Temperature range: -40°C to +80°C
Colors: Black, Red, Blue, White, Yellow, Green
Sizes: 00B/0B/1B/2B, 0K/1K/2K
Cable OD Range: 3.1mm - 8.2mm

Product Images

Tags:

7 pin cable connectors

lemo compatible connector

soldering cable connectors
