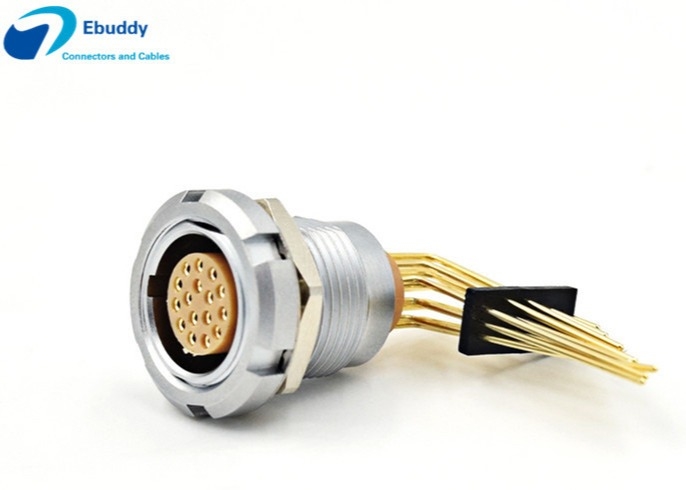

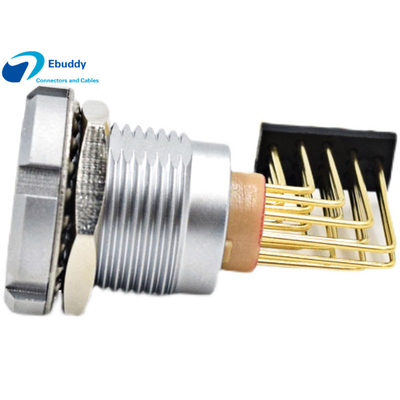

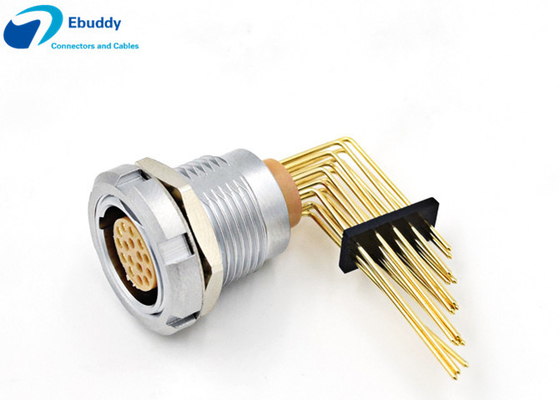

16pin Right Angle PCB Socket Lemo ECG 16pin Receptacle With Two Nuts ECG.1B.316.CLV

16pin Right Angle PCB Socket Lemo ECG 16pin Receptacle With Two Nuts ECG.1B.316.CLV

16pin Right Angle PCB Socket Lemo ECG 16pin Receptacle With Two Nuts ECG.1B.316.CLV
16pin Right Angle PCB Socket Lemo ECG 16pin Receptacle With Two Nuts ECG.1B.316.CLV
16pin Right Angle PCB Socket Lemo ECG 16pin Receptacle With Two Nuts ECG.1B.316.CLV
Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE,ROHS
Model Number: ECG.1B.316.CLV
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: PP bag
Delivery Time: 3-7 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 90000pcs per month
Contact Now
Detailed Product Description
Model: ECG.1B.316.CLV Pin: 16pin
Shell Size: Lemo 1B Style: PCB Socket
Contact: Elbow Solder Max. Matings: 5000
High Light:

16pin right angle PCB socket

,

Lemo right angle PCB socket

,

ECG 16pin Lemo receptacle

16pin right angle pin PCB socket Lemo ECG 16pin receptacle with two nuts ECG.1B.316.CLV



Features:



  • Lemo ECG 16pin receptacle with two nuts ECG.1B.316.CLV
  • 16pin right angle pin PCB socket
  • 00B/0B/1B/2B/3B/4B available
  • 2pin--32pin for your option
  • Endurance (Shell):5000 mating cycles
  • Humidity (max):<=95% [at 60 deg C / 140 F]
  • IP Rating:50
  • Configuration:Brass (gold plated)
  • Housing Material:Brass chrome plated

  • Temp (min):-20 deg C
  • Temp (max):+150 deg C



Specifications:



  • Shell Style/Mode: EC*: Fixed receptacle with two nuts and elbow contacts for printed circuit (back panel mounting)
  • Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
  • Housing Material: Brass (chrome plated shell and collet nut, nickel plated brass latch sleeve and mid pieces
  • Contact Type: Print (elbow)
  • Contact Dia.: 0.5 mm (0.02in)
  • R (max): 8.7 mOhm
  • Vtest (contact-shell): 1250 V (AC), 1770 V (DC)
  • Vtest (contact-contact): 800 V (AC), 1130 V (DC)



Size and drawing:



16pin Right Angle PCB Socket Lemo ECG 16pin Receptacle With Two Nuts ECG.1B.316.CLV 0







Custom service:



  • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
  • Cable assembly service: we can supply cable assembly service according to your requirements.
  • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
  • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
  • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.



Corlorful Sleeve (Jacket):



Specification:

  • Material: Polyurethane material(PU)
  • Temperature range: -40°--- +80°
  • Color: Black, Red, Blue, White, Yellow, Green
  • Size: 00B/0B/1B/2B, 0K/1K/2K
  • Cable OD Range: 3.1mm—8.2mm
